Introduction to Mechanics

An overview of the foundational principles of mechanics, scalar and vector quantities, systems of units, and Newton's Laws of Motion.

Overview

This module introduces the foundational principles of mechanics, scalar and vector quantities, systems of units, and Newton's Laws of Motion. For architecture students, understanding mechanics is the crucial first step toward designing safe, stable, and enduring structures that can resist a variety of loads without failing. It forms the bridge between pure architectural design and practical structural engineering.

Definition and Principles of Mechanics

An introduction to the physical science of forces and motion, specifically Statics.

What is Mechanics?

Mechanics is the branch of physical science that deals with the state of rest or motion of bodies under the action of forces. It is typically divided into three primary parts:

Rigid-Body Mechanics: The study of solid bodies that do not deform under load. (This is our focus).
Deformable-Body Mechanics: The study of how materials stretch, compress, and bend. (Covered later in Strength of Materials).
Fluid Mechanics: The study of liquids and gases. (Covered in Hydraulics and Plumbing).

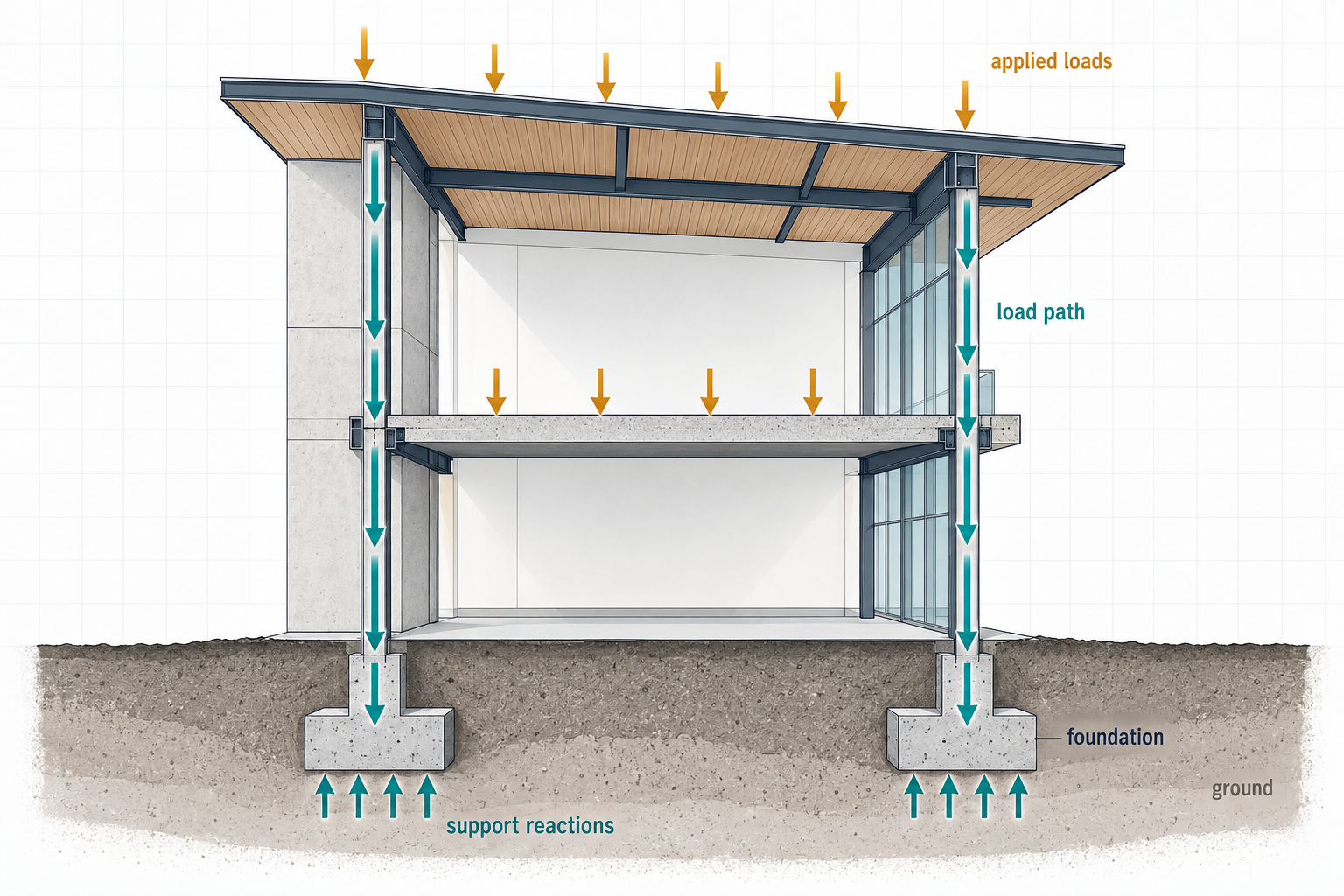

In the context of architectural mechanics, we are primarily concerned with Rigid-Body Mechanics, specifically Statics—the study of bodies at absolute rest or moving with constant velocity. To keep the math solvable for initial structural design, we make the fundamental assumption that the building materials (concrete, steel, timber) are perfectly rigid and do not deform under applied loads.

Important

Why is it important for Architecture? Before an architect can safely execute a beautiful cantilevered balcony or a soaring un-columned roof span, they must mathematically ensure the structure will not collapse under its own weight or external forces. Architectural mechanics provides the physical tools to trace how loads (like gravity, hurricane winds, and building occupants) travel from the roof, through the framing, down the columns, and safely into the foundation.

Basic Quantities and Idealizations

The fundamental parameters and simplified models used to analyze real-world structural systems.

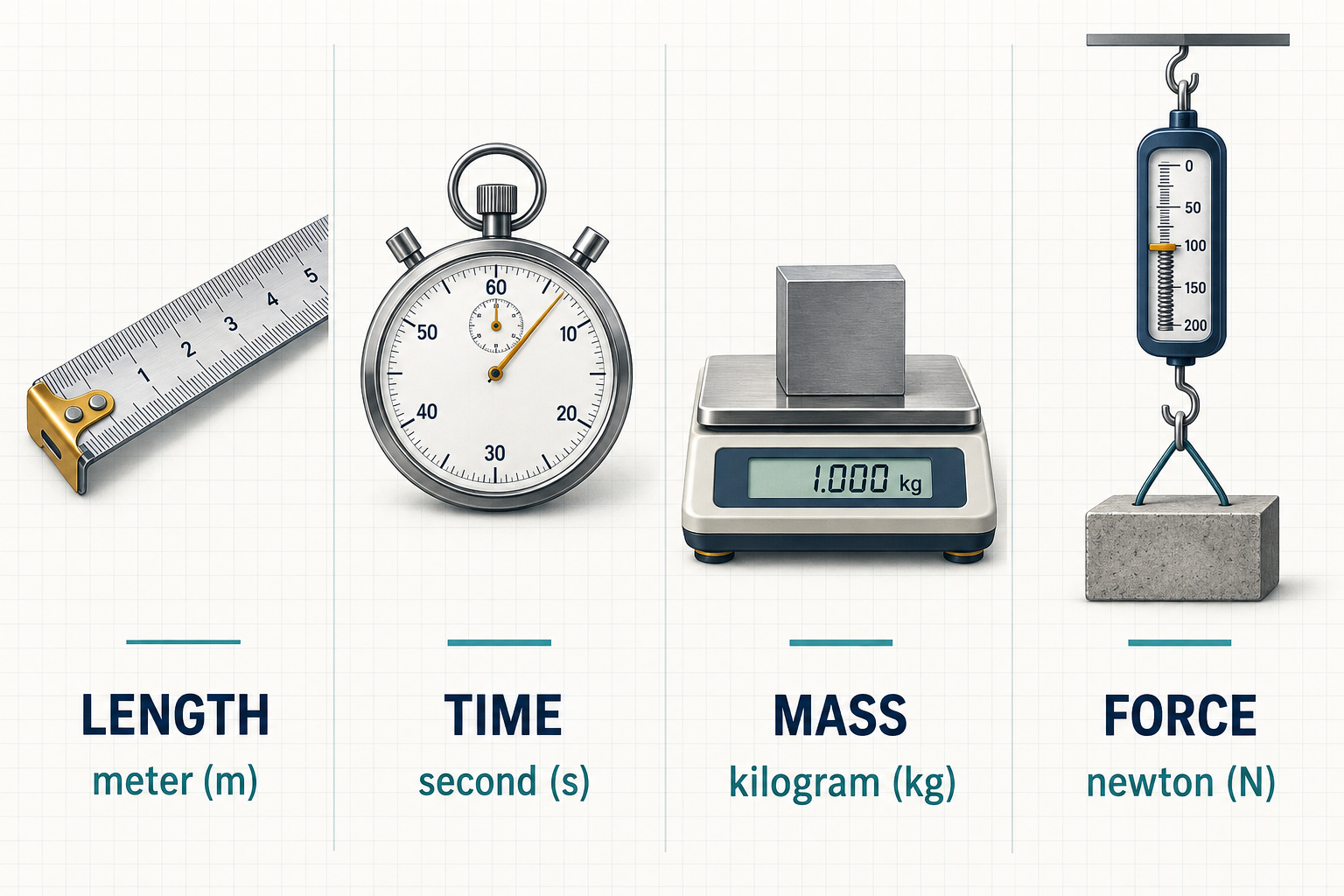

Basic Quantities

Before studying mechanics, we must define the four basic quantities used throughout the science:

Length: Used to locate the position of a point in space and describe the size of a physical system.
Time: Conceived as a succession of events. Although principles of statics are independent of time, it plays an important role in dynamics.
Mass: A measure of a quantity of matter that is used to compare the action of one body with that of another. It reflects the resistance of matter to a change in velocity.
Force: A "push" or "pull" exerted by one body on another. In statics, forces are typically structural loads, supports, or gravity.

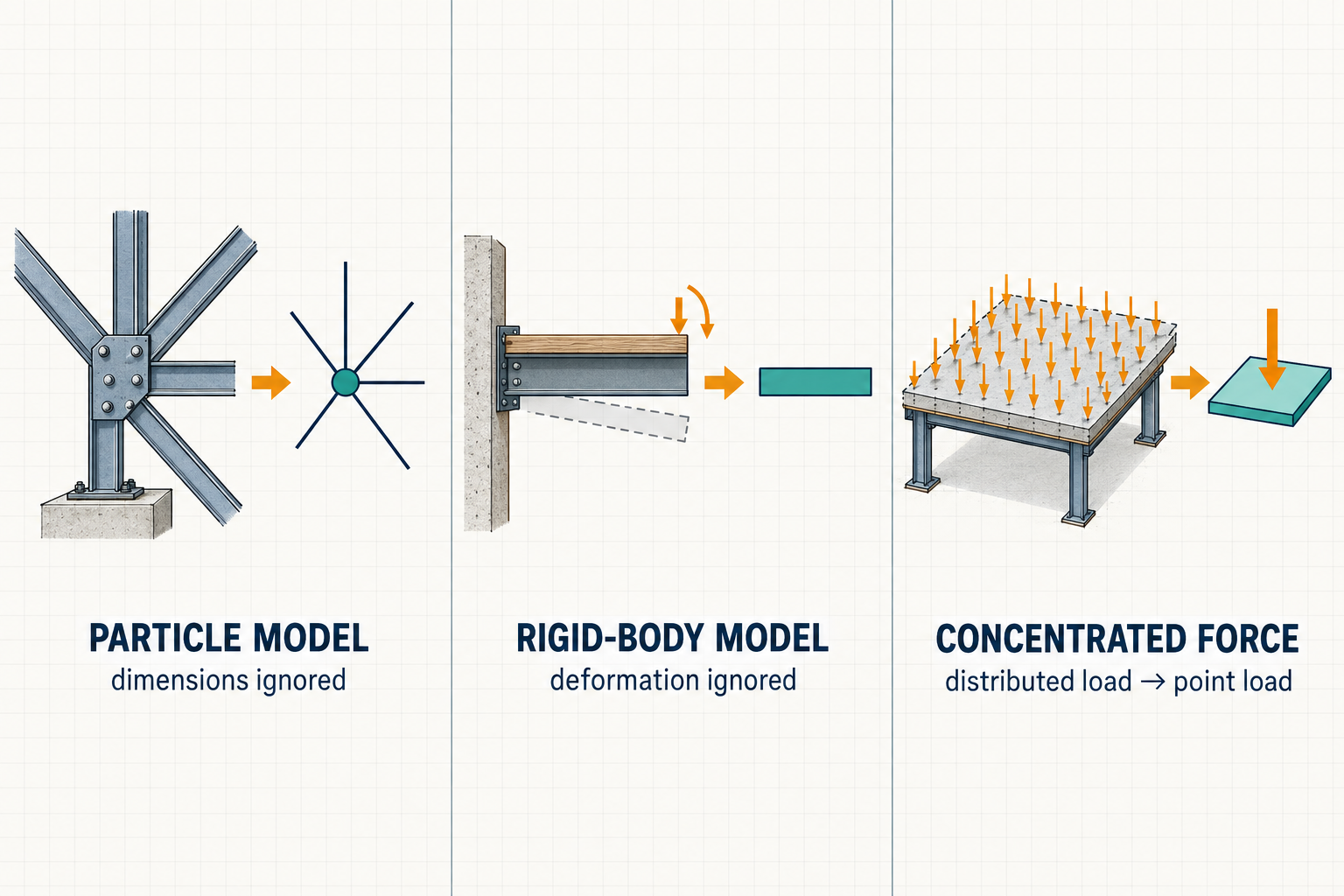

Idealizations in Mechanics

To simplify the complex physical world into solvable mathematical models, structural engineers use three main idealizations:

Particle: Has mass, but its size is neglected. We assume all forces act at a single, infinitely small point in space. This is useful when the physical size of the body does not significantly affect the analysis.
Rigid Body: A combination of a large number of particles in which all the particles remain at a fixed distance from one another, both before and after applying a load. It does not deform, bend, or crush. This simplifies statics greatly.
Concentrated Force: Represents the effect of a loading which is assumed to act at a point on a body. For example, a heavy column resting on a wide foundation pad might be idealized as a single concentrated force acting at the exact center of the connection.

Characteristics of a Force

The essential components that perfectly define how a force interacts with a structure.

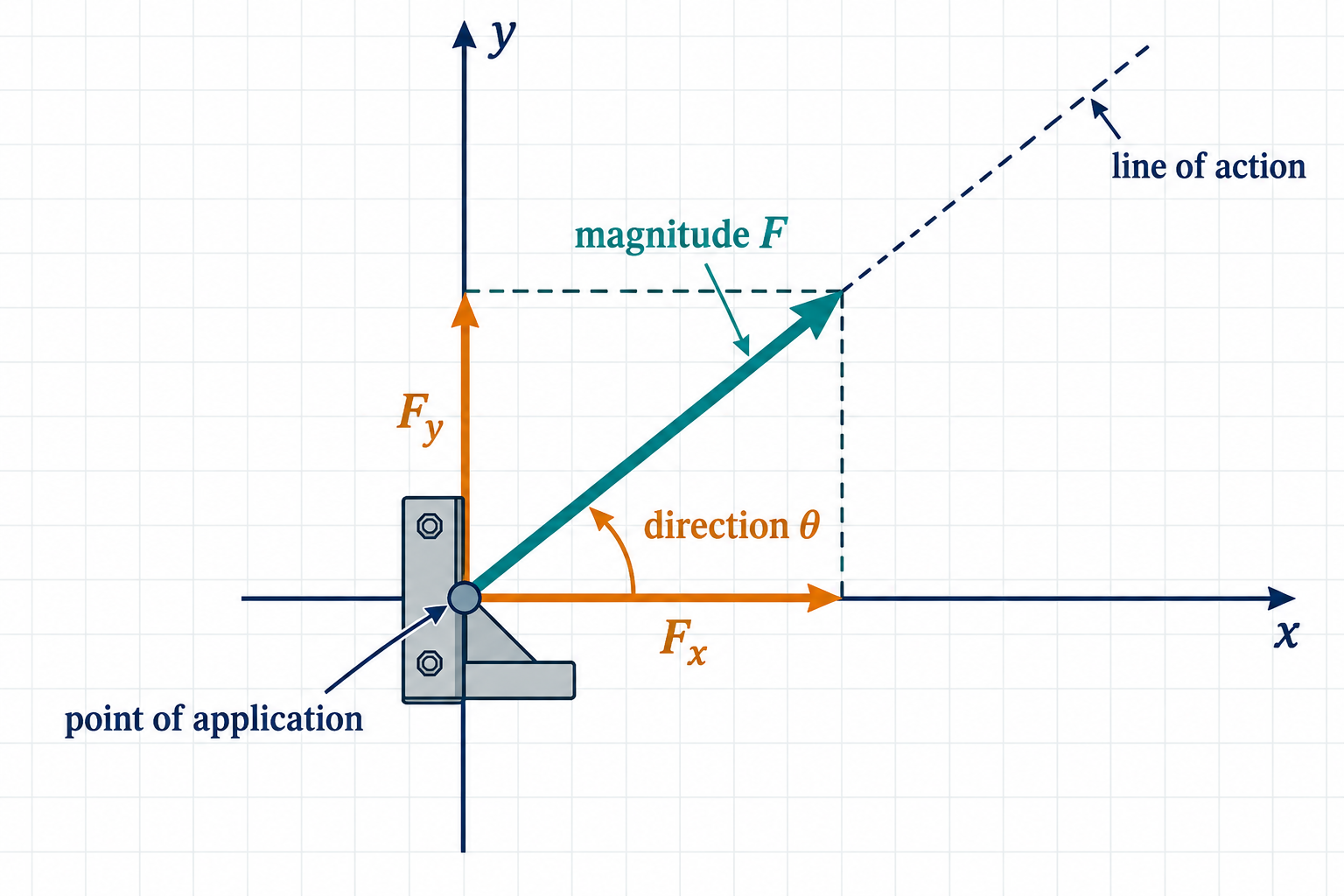

Defining a Force Vector

A force cannot be defined by a single number. Because it is a vector quantity, a complete description of a force requires three specific characteristics:

Magnitude: The amount or size of the force (e.g., $50 \text{ kN}$ ).
Direction and Line of Action: The path along which the force acts. This includes the angle relative to a reference axis (e.g., $45^\circ$ from the horizontal) and the sense (pushing or pulling, represented by an arrowhead).
Point of Application: The exact physical location on the body where the force makes contact.

Fundamental Principles

The bedrock rules governing how forces combine and interact with rigid bodies.

The Parallelogram Law

The Parallelogram Law for the addition of forces states that two continuous forces acting on a particle may be replaced by a single resultant force, obtained by drawing the diagonal of the parallelogram which has sides equal to the given continuous forces. This is the geometric basis for all vector addition in statics.

The Principle of Transmissibility

This principle states that the conditions of equilibrium or motion of a rigid body will remain unchanged if a force acting at a given point of the rigid body is replaced by a force of the same magnitude and same direction, but acting at a different point, provided that the two points lie on the same line of action.

In architecture, this means you can conceptually slide a force vector anywhere along its straight line of action without changing its external effect on the building.

Spatial vs. Planar Forces

Differentiating between 2D simplifications and true 3D architectural conditions.

2D vs 3D Analysis

While early architectural mechanics problems are often mathematically simplified into two dimensions (Planar or 2D) for ease of learning by hand, real buildings exist and interact with forces in three dimensions (Spatial or 3D).

Planar (2D) Force Systems: Forces all lie within a single flat plane. A classic architectural example is analyzing a single triangular roof truss drawn on a piece of paper, or looking at a cross-section through a building. In this simplified model, we only need to worry about the $x$ (horizontal) and $y$ (vertical) axes.
Spatial (3D) Force Systems: Forces operate in all three physical dimensions. When wind hits the sharp corner of a high-rise tower, or a seismic earthquake shakes an asymmetrical building, the forces actively twist and push the entire structure along the $x$ , $y$ , and $z$ axes simultaneously.

Important

Modern architectural engineering relies heavily on advanced finite element analysis (FEA) computer software to calculate complex Spatial (3D) forces accurately. However, mastering Planar (2D) mechanics manually is absolutely required first, because 3D analysis is simply 2D analysis rules applied mathematically across an extra axis.

Scalar and Vector Quantities

Differentiating between magnitude-only and direction-dependent physical properties.

Understanding Quantities

In structural analysis, we must mathematically distinguish between fundamentally different types of physical measurements:

Scalar Quantities: A quantity that has magnitude (size) only. It is completely described simply by a number and a unit. Direction does not matter. Examples include the total volume of concrete ( $150 \text{ m}^3$ ), mass of a steel beam ( $500 \text{ kg}$ ), and temperature ( $22^\circ\text{C}$ ).
Vector Quantities: A quantity that has both magnitude AND direction. This is critical because where and how a force is applied completely changes its physical effect on a building structure. Examples include a wind force of $50 \text{ kN}$ pushing horizontally, or a tension cable pulling at a $45^\circ$ angle.

Systems of Units

The standard units of measurement used in global architectural calculations.

Units of Measurement

Structural engineers and architects must communicate precisely and unambiguously using standardized units. Mixing units is the primary cause of catastrophic calculation errors. The two primary systems are:

SI (International System): The modern metric system widely used internationally. Length is measured in Meters (m) or Millimeters (mm), mass in Kilograms (kg), and force in Newtons (N) or Kilonewtons (kN).
English System (US Customary): Still widely used in the US, and frequently encountered in legacy construction materials. Length is measured in Feet (ft) or Inches (in), and force in Pounds (lb) or Kips (1 kip = 1000 lbs).

Introduction to Vectors

The mathematical representation of directed physical quantities like force.

Vectors and Operations

A vector represents a quantity with both magnitude and direction, typically denoted by a bold letter or an arrow above the variable (e.g.,

\vec{F}

). Essential vector operations include:

Vector Addition: Uses the parallelogram law or triangle rule. The resultant vector $\vec{R} = \vec{A} + \vec{B}$ .
Vector Subtraction: Equivalent to adding a negative vector, $\vec{A} - \vec{B} = \vec{A} + (-\vec{B})$ .
Scalar Multiplication: Multiplying a vector by a scalar $c$ changes its magnitude by $|c|$ ; its direction remains the same if $c$ is positive, or becomes strictly opposite if $c$ is negative.
Resolution into Components: Any vector can be broken into orthogonal components, e.g., $F_x = F \cos \theta$ and $F_y = F \sin \theta$ .

Idealizations in Mechanics

Simplifying physical models mathematically.

Idealizations

To mathematically analyze physical systems, engineers rely on idealizations. These are deliberate simplifications that allow us to calculate real-world behavior accurately without getting bogged down by mathematically irrelevant details.

Particle

A body with mass but whose size is mathematically neglected (

V \approx 0

). This is used when the size of the body does not significantly affect the problem.

Rigid Body

A solid body whose geometry is assumed to be perfectly rigid, meaning it mathematically never deforms, stretches, or compresses under applied load. The distance between any two internal points remains perfectly constant. (While all real materials deform slightly, assuming absolute rigidity is mathematically sufficient for statics).

Concentrated Force

An idealized point load where a distributed physical force is mathematically assumed to act at a single, infinitely small geometric point on a rigid body.

Newton's Laws

The fundamental physical laws governing the interaction of forces, bodies, and gravity.

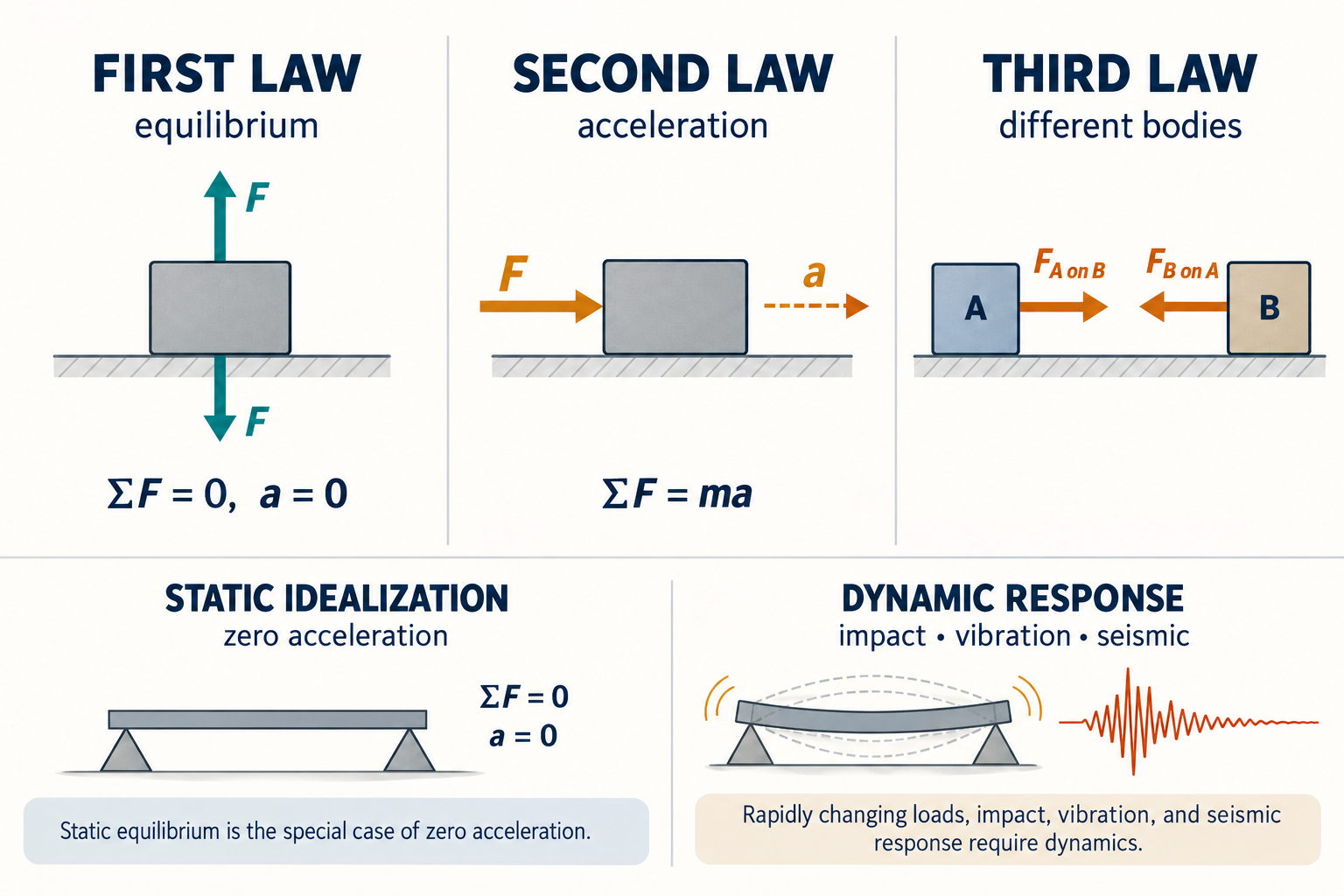

Newton's Laws of Motion

Sir Isaac Newton's three laws govern how all physical bodies respond to applied forces. They are the absolute bedrock of all structural analysis and architectural mechanics.

First Law (Inertia & Equilibrium): A particle remains at rest or continues to move with uniform velocity if there is absolutely no unbalanced force acting on it. This is the explicit definition of Static Equilibrium. A building must remain perfectly at rest.
Second Law (Acceleration): The acceleration of a particle is proportional to the resultant force acting on it and is in the direction of this force ( $F = ma$ ). While buildings shouldn't accelerate, this is vital for understanding severe dynamic loads like earthquakes.
Third Law (Action and Reaction): The forces of action and reaction between interacting bodies are equal in magnitude, opposite in direction, and collinear (acting along the exact same line). If a heavy steel roof beam pushes down on a load-bearing masonry wall with a force of $100 \text{ kN}$ (Action), the masonry wall must physically push back up on the beam with exactly $100 \text{ kN}$ (Reaction).

Newton's Law of Gravitational Attraction

This law states that two particles of mass

m_1

and

m_2

are mutually attracted with equal and opposite forces. In mechanics, we are most concerned with the attraction between the Earth and a body located at or near its surface. This unique gravitational force is called Weight.

Unlike mass (a scalar quantity that remains constant regardless of location), weight is a vector force that always acts downwards towards the center of the earth. Weight (

W

) is related to mass (

m

) and the acceleration due to gravity (

g

) by the equation:

W = mg

Limits of Static Assumptions

Understanding when idealized models fail to capture real-world behavior.

D'Alembert's Principle and Dynamics

While statics relies entirely on the assumption of zero acceleration (

\Sigma F = 0

), real-world architectural structures occasionally experience severe dynamic loading, such as seismic events or hurricane wind gusts. In these cases, the assumption of perfect rigidity and zero acceleration is no longer valid.

D'Alembert's Principle bridges statics and dynamics by introducing an "inertial force" (

-ma

), allowing dynamic problems to be treated mathematically like static equilibrium problems:

\Sigma F - ma = 0

. This forms the foundation for advanced earthquake engineering and structural dynamics, highlighting the limits of purely static analysis.

Advanced Concepts

Supplemental theoretical knowledge required for comprehensive architectural mechanics.

Dimensional Homogeneity

The principle that all terms in a governing equation must have the exact same physical dimensions, which is a critical check for architectural engineering formulas before performing any calculations.

Historical Context of Mechanics

Tracing the origins of structural analysis from antiquity to the modern era.

Foundations of Structural Mechanics

The principles of architectural mechanics were not developed overnight. They represent centuries of observation and mathematical formalization:

Archimedes (287–212 BC): Formulated the fundamental principles of the lever and buoyancy, which were the earliest mathematical expressions of static equilibrium.
Simon Stevinus (1548–1620): First formulated the laws of vector addition for forces (the parallelogram law) and solved complex problems involving forces on inclined planes.
Galileo Galilei (1564–1642): Pioneered the study of dynamics and the strength of materials, notably analyzing how beams break under varying loads.
Isaac Newton (1642–1727): Formalized the Three Laws of Motion and the Universal Law of Gravitation, providing the absolute mathematical bedrock for all classical mechanics used in architecture today.

Static vs. Dynamic Forces in Buildings

Understanding the fundamental difference between loads that stay still and loads that move.

Classifying Architectural Loads

Architectural forces are broadly classified into two categories based on how they interact with time and acceleration:

Static Forces: Loads that are applied slowly and remain constant over time. They cause zero acceleration. Examples include the dead weight of the building materials (concrete, steel) and long-term live loads (furniture, stacked library books). Statics is entirely concerned with these types of forces.
Dynamic Forces: Loads that change rapidly in magnitude, direction, or point of application over time, inducing structural acceleration. Examples include sudden earthquake tremors, gusting hurricane winds, or the rhythmic vibrations of heavy machinery. Analyzing these requires moving beyond Statics into Structural Dynamics (utilizing Newton's Second Law, $F=ma$ ).

Key Takeaways

Mechanics deals with the state of rest or motion of bodies under forces, with Statics being the primary focus for architectural design.
To simplify complex real-world buildings, we use idealizations such as the particle, rigid body, and concentrated force.
A force is a vector requiring magnitude, direction, and a point of application to be fully defined.
The Parallelogram Law and Principle of Transmissibility govern how continuous vectors are added and moved along their line of action.
Standardization of units (SI vs. English) is vital to prevent catastrophic calculation errors.
Newton's Three Laws of Motion define equilibrium, dynamic forces, and structural reactions.
Newton's Law of Gravitational Attraction explains the fundamental difference between invariant mass and the force of structural weight.
