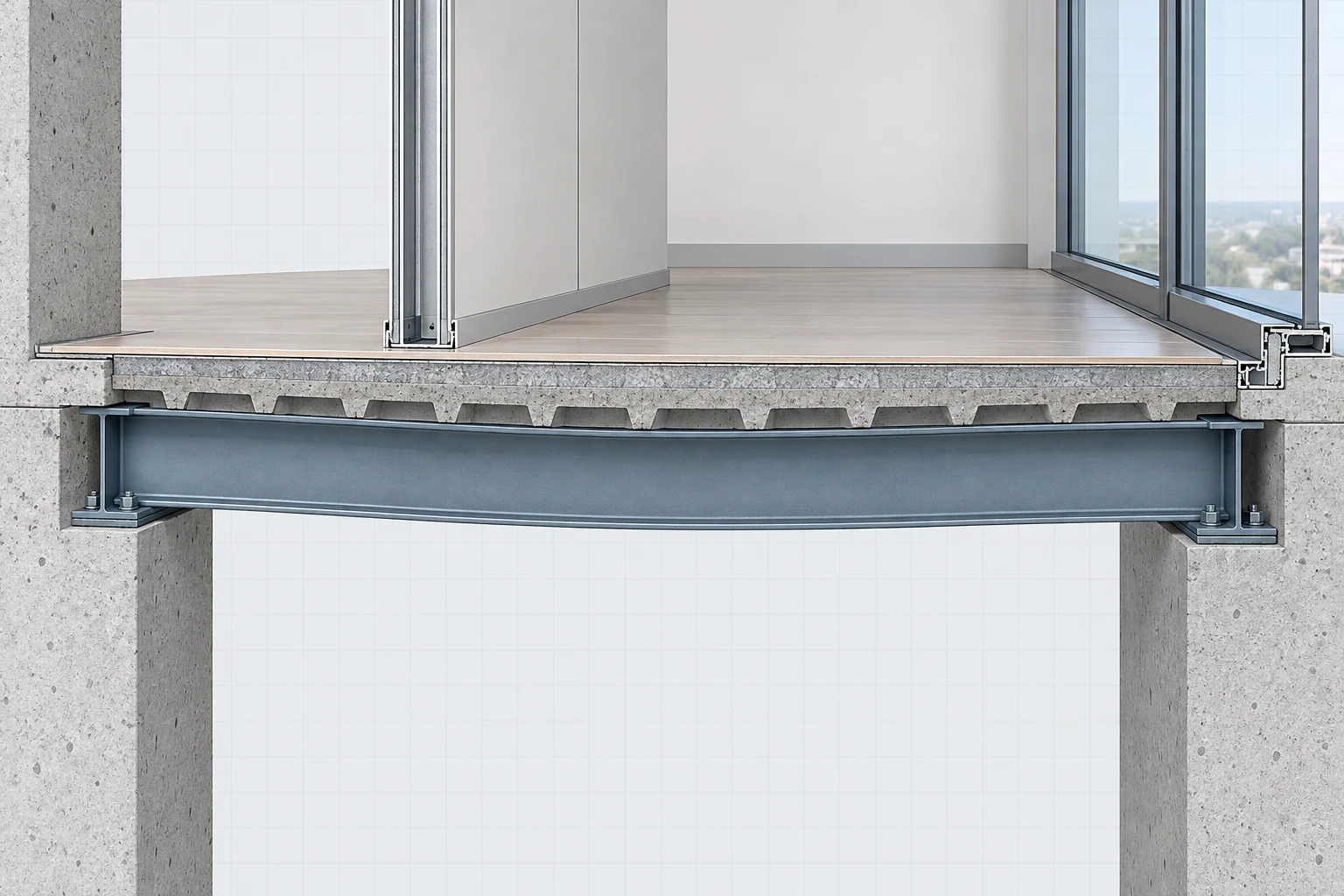

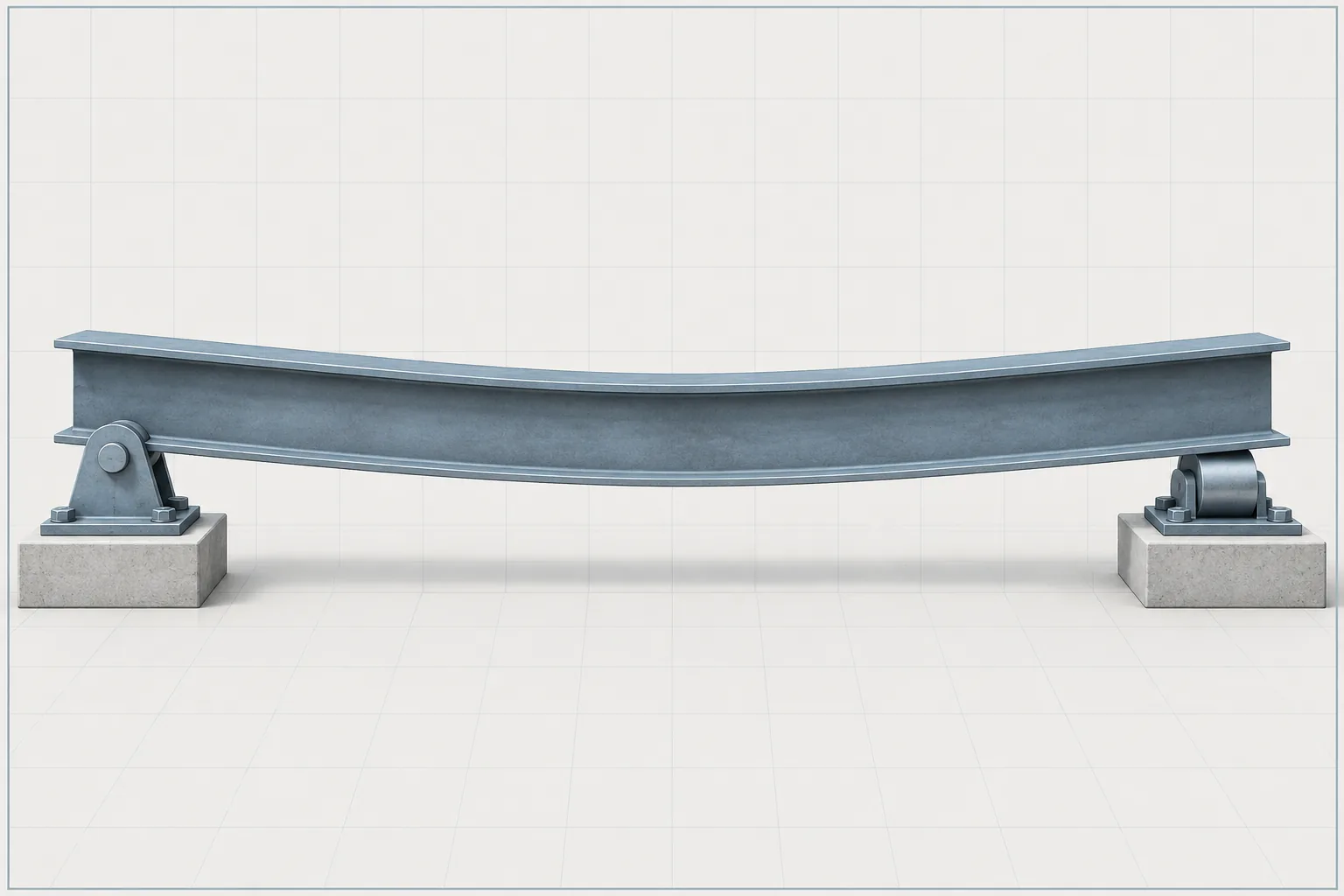

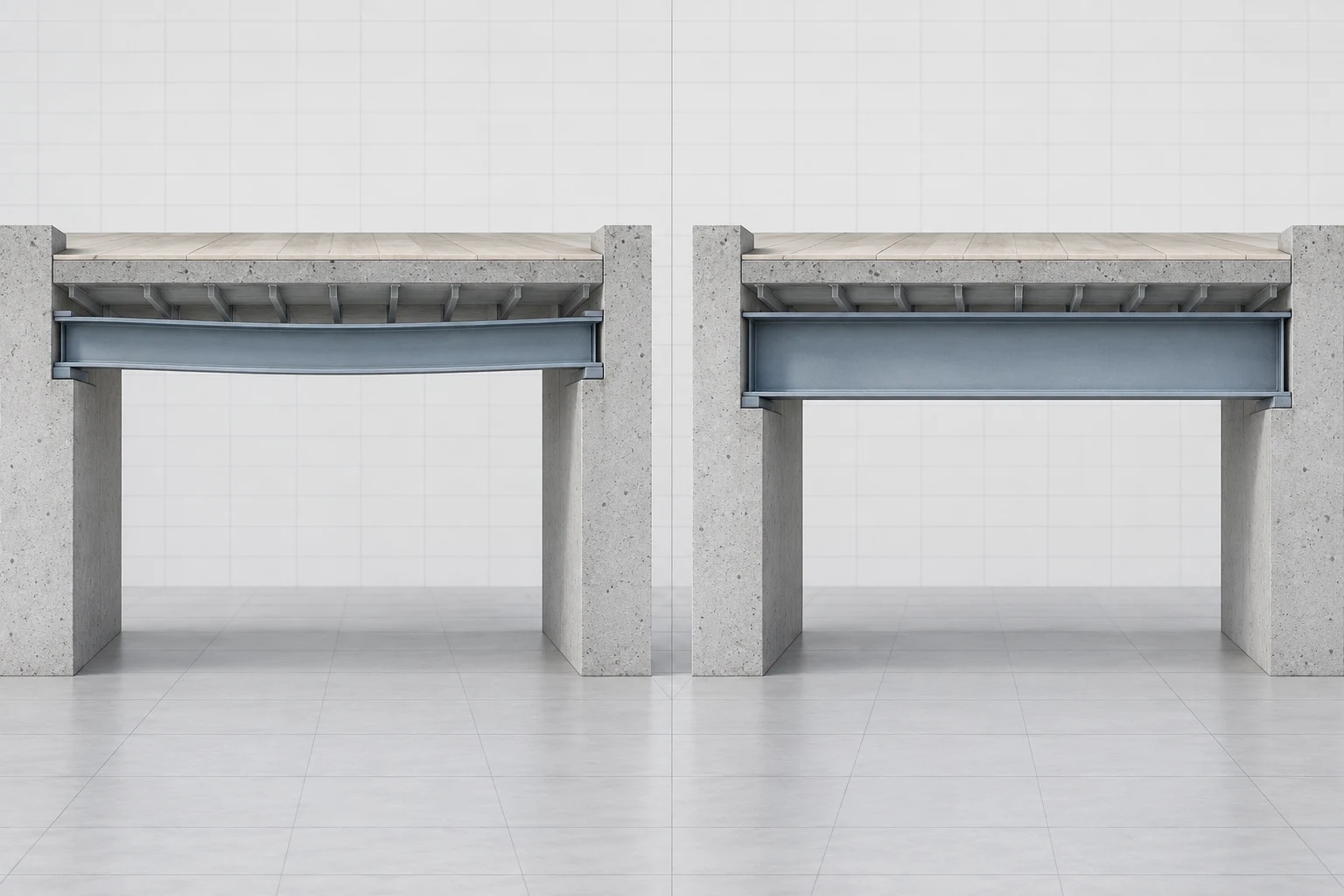

Beyond ensuring raw strength (preventing breaking), an engineer must verify that a beam does not excessively deform or "sag" under its applied loads. A timber floor joist might be perfectly strong enough not to snap, but if it sags three inches in the middle, it will crack plaster ceilings below, damage rigid floor tiles above, or make the floor uncomfortably "bouncy" to walk on.

This module covers the mathematical and graphical methods used to accurately predict the vertical deflection of loaded beams.

The vertical deflection of a beam ($y$) at any point $x$ along its length can be found by mathematically integrating the equation that describes its bent shape, known as the elastic curve.

The fundamental calculus relationship that connects the internal bending moment ($M$) to the physical deflection ($y$) is:

Where:

The double integration method is a straightforward, purely mathematical approach to finding the continuous deflection equation for a beam by integrating the bending moment equation twice.

While double integration is powerful, it becomes mathematically tedious and error-prone when a beam has multiple discontinuous loads (like several point loads), requiring separate integration equations and matching constants for every segment between loads.

The Area-Moment Method is a highly efficient semi-graphical technique that uses the geometric properties of the Bending Moment diagram (specifically the area under the $M/EI$ diagram) to rapidly find slopes and deflections at specific points without full calculus integration. It relies on two fundamental theorems.

Theorem 1 (Slope): The change in slope ($\theta$) between any two points $A$ and $B$ on the elastic curve is exactly equal to the area under the $M/EI$ diagram between those two points.

Theorem 2 (Deflection): The vertical tangential deviation ($t_{B/A}$) of point $B$ on the elastic curve from the tangent line drawn from point $A$ is exactly equal to the "moment of area" under the $M/EI$ diagram between $A$ and $B$, computed about point $B$.

Where $\bar{x}$ is the horizontal distance from the point of interest $B$ to the geometric centroid of that specific $M/EI$ area segment.

The Conjugate Beam Method is an incredibly powerful analytical technique developed in 1868 by Otto Mohr. It cleverly transforms the complicated calculus of finding slopes and deflections (like Double Integration) into a simple, straightforward statics problem involving calculating shear and moment.

The true genius of the method relies on two fundamental theorems connecting the real beam to the imaginary conjugate beam:

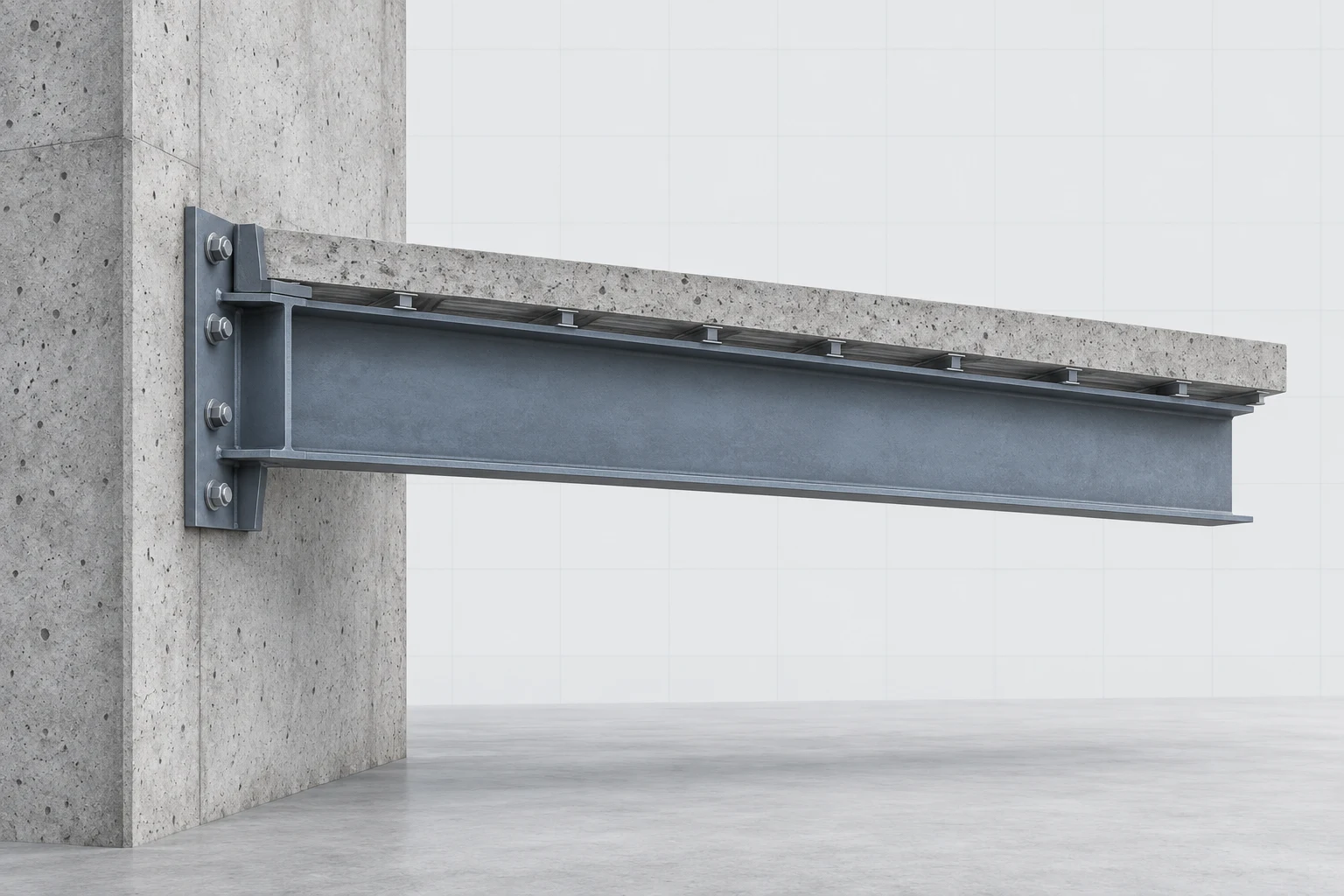

To use this method, you first establish the conjugate beam's supports based on specific rules (e.g., a real pin support becomes a conjugate pin, but a real fixed support becomes a conjugate free end, and vice versa). Then, you apply the $M/EI$ diagram as a distributed load. Finally, you simply calculate the shear ($V$) and moment ($M$) at any point using basic statics ($\Sigma F_y = 0$, $\Sigma M = 0$), which directly gives you the slope ($\theta$) and deflection ($\delta$) at that point.

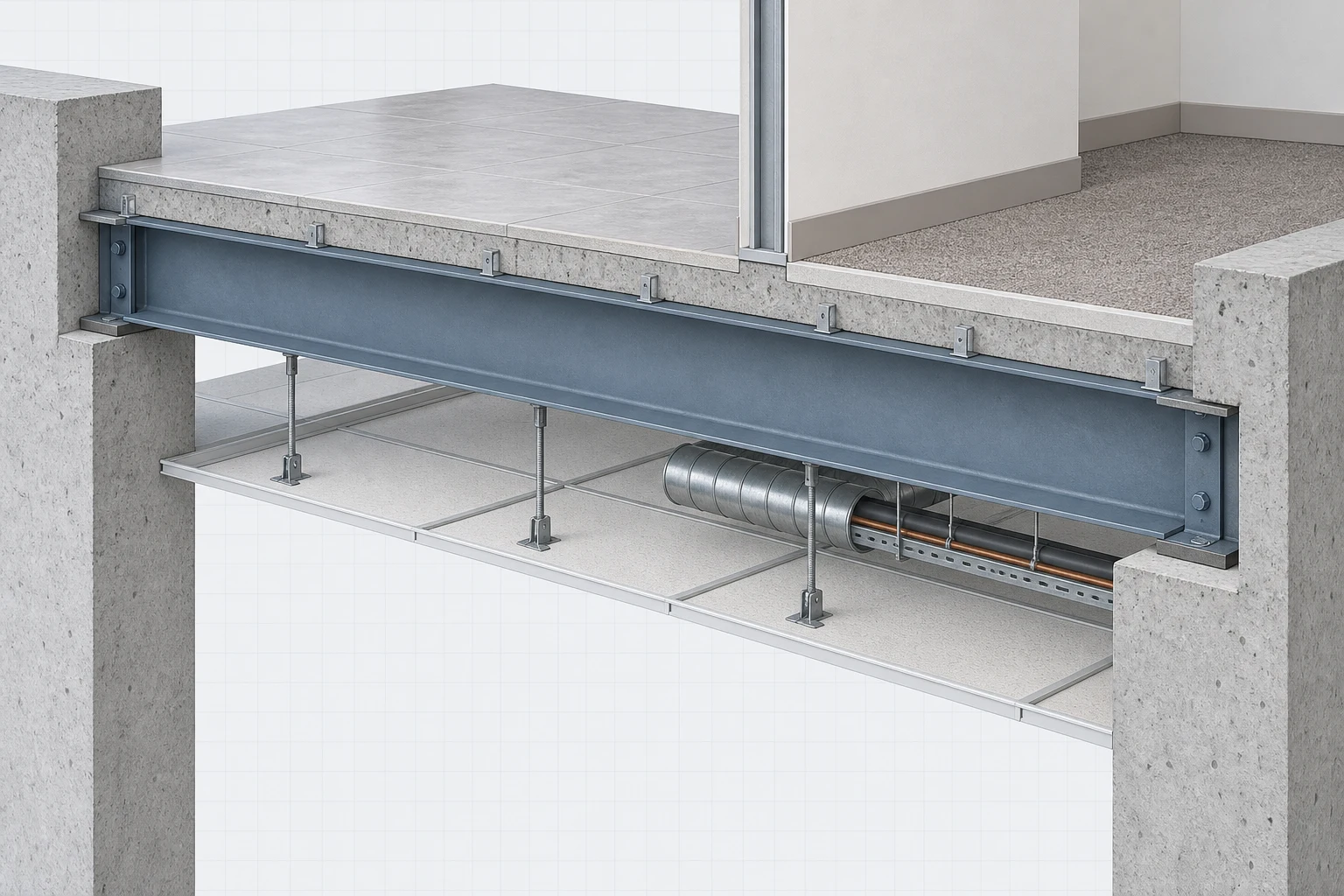

The Superposition Method relies on the fundamental principle that, for linear elastic structural systems, the total deflection or slope at any point caused by several different, complex loads acting simultaneously is exactly equal to the simple algebraic sum of the deflections or slopes caused by each load acting individually.

In real-world engineering practice, engineers rarely derive deflection equations from scratch using calculus or area-moment. Instead, they rely heavily on standard, published tables of beam formulas (like those found in the AISC manual or structural textbooks) for common loading scenarios (e.g., a simple point load at midspan, a full UDL, an applied end moment).

When a beam has a complex combination of these standard loads, the engineer simply looks up the pre-calculated deflection formula for each individual load case, plugs in the numbers, and algebraically adds the results together to find the total deflection.
