Module 10: Columns

Designing vertical members against compressive loads and buckling.
Columns are absolutely critical vertical members in structures, primarily subjected to axial compressive loads. They are the primary pathways transferring heavy roof and floor loads down to the building's foundation. This module explores their unique behavior, the profound importance of end support connections, and the terrifying phenomenon of buckling—a sudden, catastrophic failure mode.

Key Concepts

Checklist

Column

A structural member, typically vertical, that is designed to support primary compressive loads. In architectural frameworks, they are the vertical "legs" of the building.

Behavior of Columns

Crushing vs. Buckling
The failure mode of a column does not depend solely on its material strength; it depends heavily on its geometry, specifically its slenderness ratio (Le/rL_e/r), where LeL_e is the effective length and rr is the radius of gyration (r=I/Ar = \sqrt{I/A}).

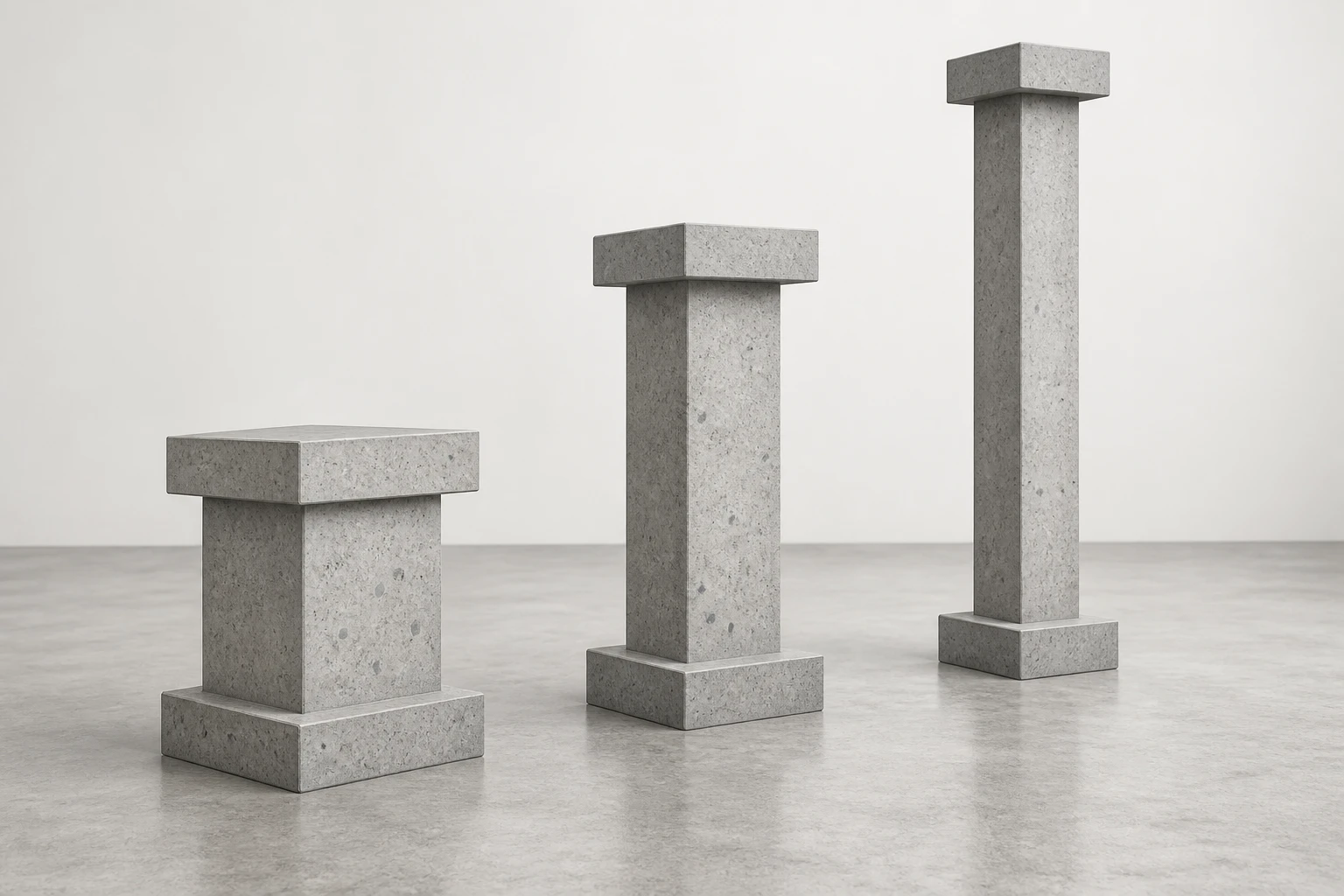

  1. Short Columns: Have a very low slenderness ratio. They fail strictly by material crushing (yielding) when the uniform compressive stress exceeds the material's yield strength (σ=P/A\sigma = P/A).
  2. Long, Slender Columns: Have a high slenderness ratio. They fail by buckling—a sudden, dramatic lateral bending—long before the compressive stress reaches the material's yield strength.
  3. Intermediate Columns: Fall between short and long. They exhibit a complex, combined failure behavior involving both partial material yielding and geometric instability. Most structural columns in architecture fall into this category.

Buckling

A sudden geometric instability that occurs in slender structural members subjected to high compressive stress, where the member bows outward laterally before the material itself structurally fails by crushing. It is a geometry-driven failure.

The Weak Axis

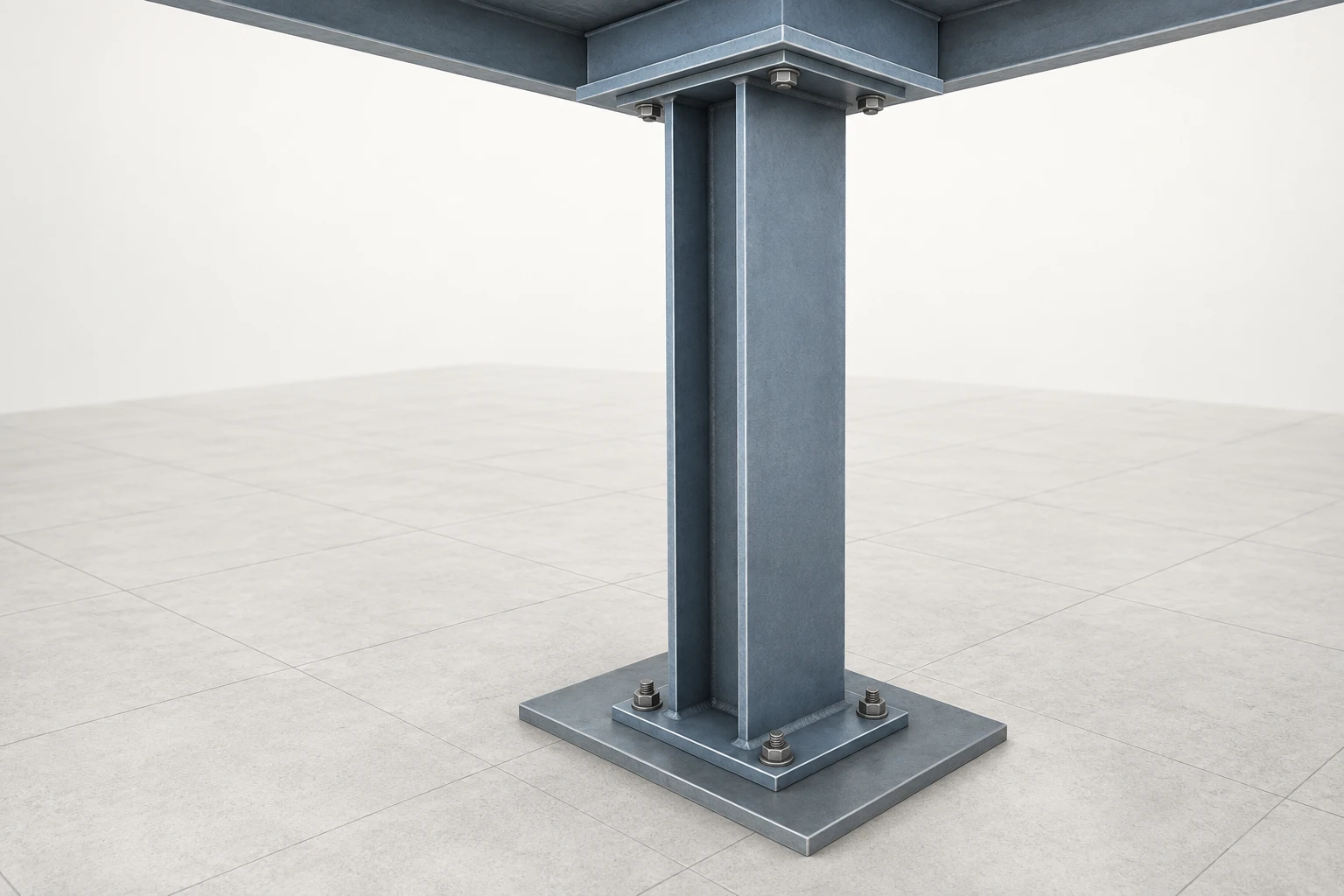

Because buckling is a geometric failure based on bending stiffness, a column will always buckle about its weakest axis—the cross-sectional axis that has the lowest moment of inertia (IminI_{min}).
This is why a standard 2x4 piece of wood used as a column will bend easily in the "flat" direction but is very stiff in the "deep" direction. Efficient column design (like using hollow steel tubes or W-shapes) attempts to balance the moment of inertia in both directions.
Key Takeaways
  • Short columns fail by material yielding (crushing).
  • Long columns fail by geometric instability (buckling) about their weakest axis.
  • Intermediate columns fail by a complex combination of both.

Euler's Formula for Long Columns

Predicting the critical buckling load
The brilliant Swiss mathematician Leonhard Euler developed a theoretical formula in 1757 to precisely predict the critical load (PcrP_{cr}) at which a perfectly straight, perfectly elastic, long, slender column with pin-ended supports will suddenly buckle.
Pcr=π2EIL2 P_{cr} = \frac{\pi^2 EI}{L^2}
Where:
  • PcrP_{cr} = Critical or Euler buckling load (the absolute maximum load before instability occurs)
  • EE = Modulus of elasticity of the material
  • II = Minimum moment of inertia of the cross-section (IminI_{min})
  • LL = Actual unsupported length of the column

Important

Notice that material yield strength (FyF_y) does NOT appear in Euler's formula! For long, slender columns, using a stronger, higher-grade steel will not increase the buckling load at all. Only changing the geometry (II, LL) or the material's stiffness (EE) will help.
Key Takeaways
  • Euler's formula (Pcr=π2EI/L2P_{cr} = \pi^2 EI / L^2) predicts the absolute maximum load a long column can take before buckling.
  • Increasing material yield strength does not increase the buckling load; only increasing stiffness (EE) or geometric inertia (II) helps.

Derivation Concept of Euler's Formula

Differential equation of the deflection curve
Leonhard Euler derived his famous critical load formula by setting up the differential equation for the elastic curve of a pinned-pinned column slightly deflected under a compressive load PP.
The internal bending moment MM at any distance xx is equal to PyP \cdot y (where yy is the lateral deflection). Equating this to the beam deflection equation (EId2ydx2=MEI \frac{d^2y}{dx^2} = -M), Euler created a second-order linear homogeneous differential equation.
Solving this differential equation yields a sinusoidal deflection curve and reveals that the column can only maintain this deflected equilibrium state at specific, discrete values of PP. The lowest of these values is the critical buckling load (PcrP_{cr}).
Key Takeaways
  • Euler's formula is derived by solving the differential equation of the elastic curve (EIy+Py=0EIy'' + Py = 0) for a slightly deflected column.

Effective Length and End Conditions

How connections dictate column strength

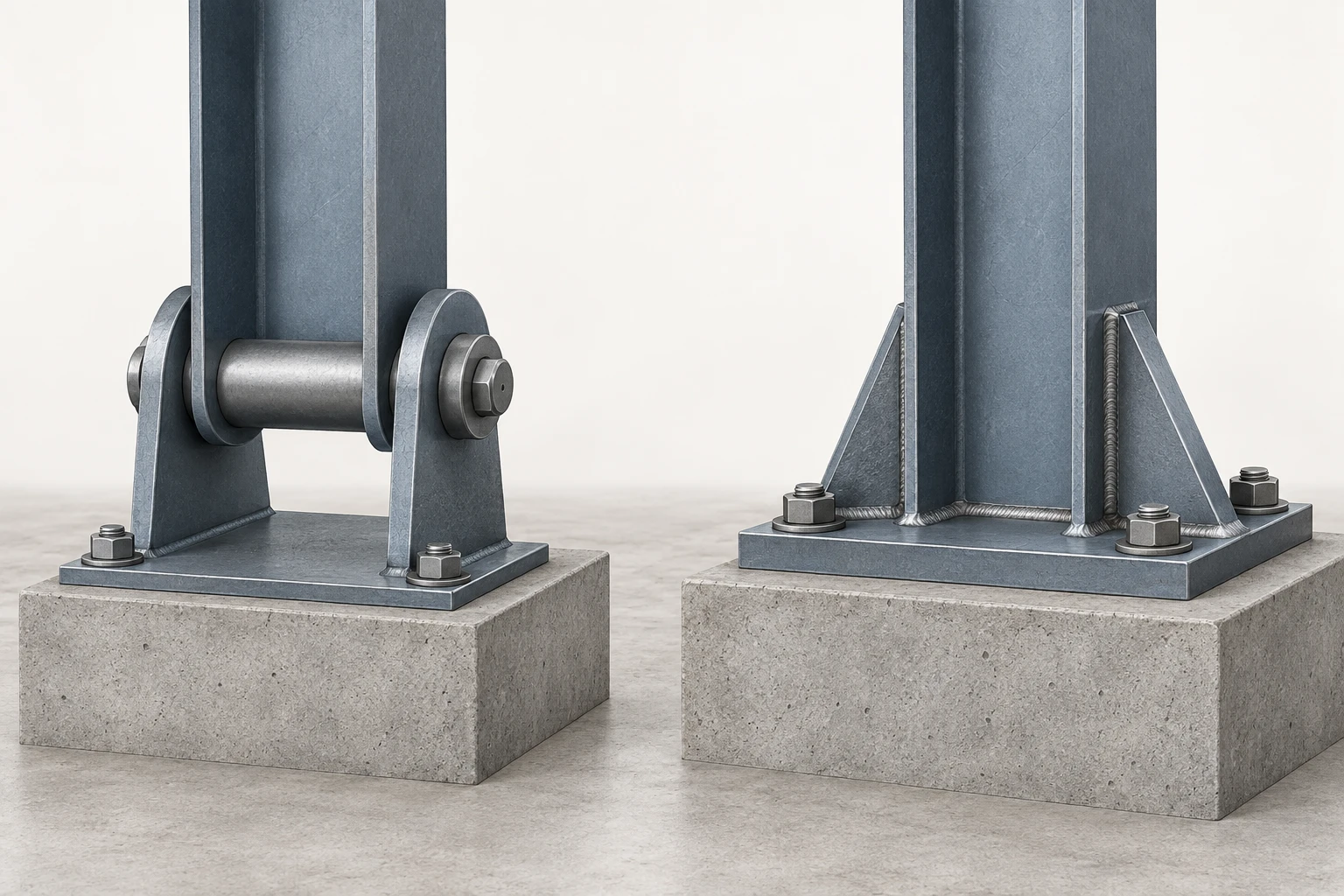

Euler's original basic formula assumes both ends are "pinned" (free to rotate, but not translate horizontally). Real architectural columns have different end connections (bolted to concrete, welded to beams, completely free like a flagpole).
To seamlessly account for these different restraints in Euler's formula, engineers use an Effective Length (LeL_e), which modifies the actual length by an effective length factor (KK).
Le=KL L_e = KL
The generalized, practical Euler formula becomes:
Pcr=π2EI(KL)2=π2EILe2 P_{cr} = \frac{\pi^2 EI}{(KL)^2} = \frac{\pi^2 EI}{L_e^2}

Effective Length Factor (KK)

A theoretical or code-specified coefficient used to mathematically adjust the actual length of a column to an equivalent "pinned-pinned" length for standard buckling calculations.
Common theoretical KK factors:
  • Pinned-Pinned: K=1.0K = 1.0 (The theoretical base case; it buckles in a single standard bow)
  • Fixed-Fixed: K=0.5K = 0.5 (Ends cannot rotate; it is effectively half as long, making it 4 times stronger than pinned-pinned)
  • Fixed-Pinned: K=0.7K = 0.7
  • Fixed-Free (Cantilever column like a light pole): K=2.0K = 2.0 (It is effectively twice as long, making it only 25% as strong as a pinned-pinned column)

Column Buckling Visualizer (Euler's Formula)

Analyze how length, cross-section, and support conditions affect a column's critical buckling load.

P_cr
Effective Length (KLKL)
4.00 m
Weak Axis IminI_{min}
16.7 ×10⁶
Slenderness (KL/rKL/r)
138.6
Fails by Buckling
2056.2 kN

Column Strength Curve (Stress vs Slenderness)

Loading chart...
Key Takeaways
  • The Effective Length Factor (KK) adjusts the actual length of a column based on how its ends are supported.
  • A fixed-fixed column (K=0.5K=0.5) is four times stronger against buckling than a pinned-pinned column (K=1.0K=1.0).

Intermediate Columns and the Secant Formula

Bridging the gap between crushing and buckling

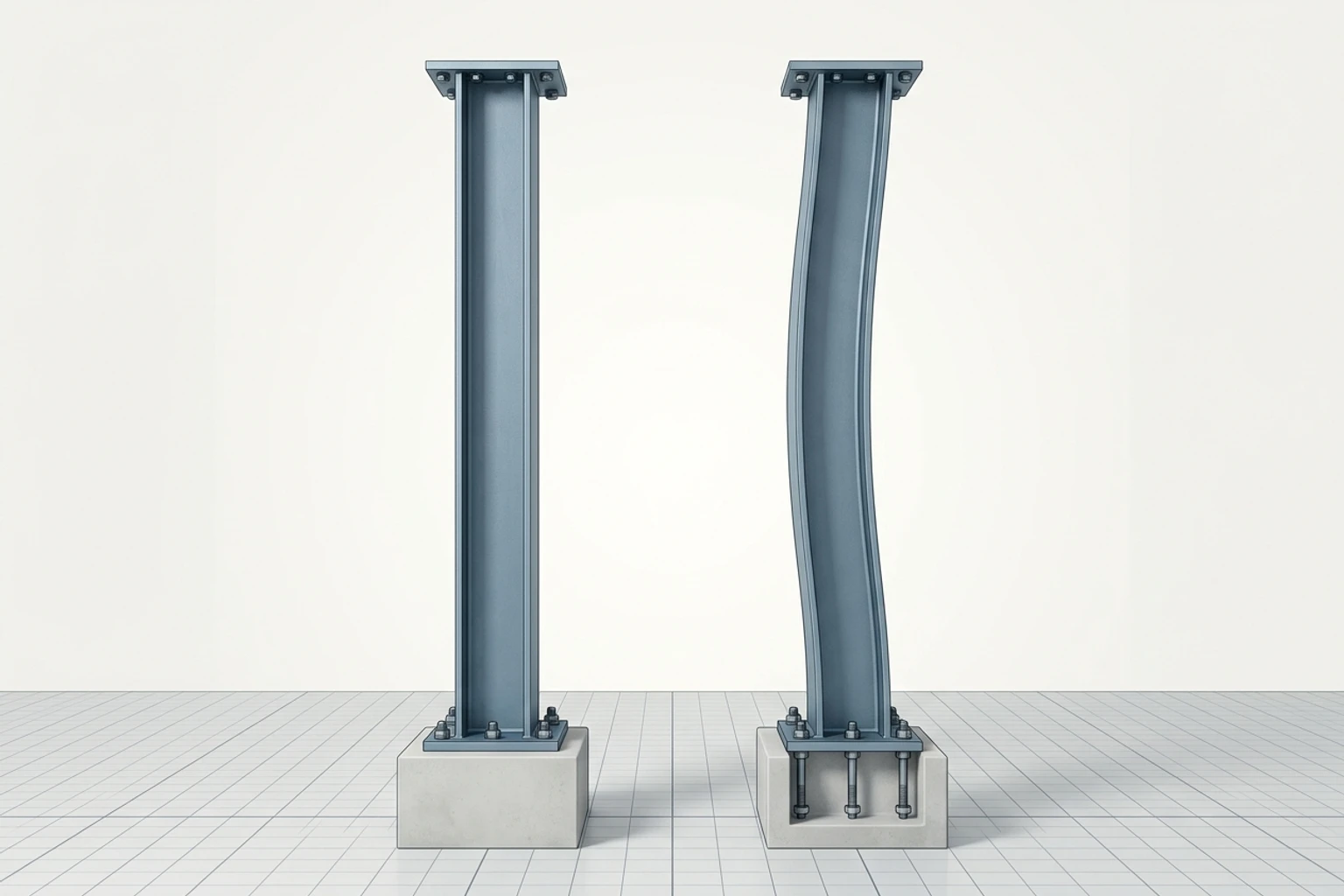

Pure Euler buckling analysis only applies to perfectly straight, very long, slender columns loaded exactly at their centroid. Real architectural columns always have slight initial manufacturing imperfections, and loads are almost always slightly eccentric (off-center).
Because of this, most structural columns fall into the "intermediate" slenderness range. They fail by a complex combination of initial bending (due to eccentricity) leading to material yielding on the compression face, quickly followed by geometric instability.
To theoretically account for initial load eccentricities (ee), engineers can use the Secant Formula to determine the maximum compressive stress (σmax\sigma_{max}) that will develop in the column:
σmax=PA[1+ecr2sec(Le2rPEA)] \sigma_{max} = \frac{P}{A} \left[ 1 + \frac{ec}{r^2} \sec\left( \frac{L_e}{2r} \sqrt{\frac{P}{EA}} \right) \right]
Where:
  • ec/r2ec/r^2 is defined as the eccentricity ratio.
  • Because the applied load PP appears on both sides of the equation AND inside the trigonometric secant function, solving for the allowable load PP requires a tedious iterative mathematical process or the use of pre-calculated design charts.

Note

In modern structural practice, building design codes (like the AISC manual for steel or the NSCP for the Philippines) do not require engineers to solve the Secant formula daily. Instead, they provide simplified empirical formulas—often based on parabolic curves—to directly calculate the safe allowable stress for intermediate columns, ensuring a reliable, non-iterative design approach.
Key Takeaways
  • The Secant Formula accounts for initial load eccentricities in intermediate columns.
  • Because it is difficult to solve manually, structural design codes provide simplified empirical formulas for everyday engineering practice.

Intermediate Columns and Empirical Formulas

Bridging the gap between crushing and buckling
Euler's formula (Pcr=π2EI(KL)2P_{cr} = \frac{\pi^2 EI}{(KL)^2}) is highly accurate for long, slender columns that fail purely due to elastic instability (buckling) well below the material's yield point.
Conversely, short columns fail strictly by material crushing (yielding), governed simply by σ=P/Aσyield\sigma = P/A \le \sigma_{yield}.
However, the vast majority of columns used in actual structures fall into a category called intermediate columns. These columns are neither perfectly short nor perfectly slender. They fail by a complex combination of partial material yielding and inelastic buckling. Euler's formula becomes unsafe for these columns because it predicts a buckling strength higher than the actual failure load due to yielding.
Because the transition between crushing and buckling is complex and depends heavily on imperfections in the column (initial straightness, residual stresses from manufacturing), engineers rely on empirical formulas—derived from extensive laboratory testing rather than pure theory—to design intermediate columns.
The most famous set of empirical formulas for structural steel columns is provided by the American Institute of Steel Construction (AISC). The AISC specifications define a critical slenderness ratio (CcC_c) that separates intermediate columns from long columns.

Procedure

  1. Determine KL/rKL/r: Calculate the effective slenderness ratio of the column.
  2. Calculate CcC_c: Determine the transition slenderness ratio for the specific grade of steel (e.g., Cc=2π2EσyC_c = \sqrt{\frac{2 \pi^2 E}{\sigma_y}}).
  3. Compare and Choose Formula: If KL/r>CcKL/r > C_c (Long Column), design is governed by Euler's buckling. If KL/rCcKL/r \le C_c (Intermediate Column), design is governed by a parabolic empirical formula transitioning from yield stress to Euler buckling stress.

The Secant Formula

While empirical codes like AISC dominate practical design, a more precise theoretical approach to intermediate columns with known initial eccentricity or crookedness is the Secant Formula. It directly calculates the maximum stress including the bending moments caused by eccentricity (ee), but it is complex and requires iteration to solve for the maximum allowable load.
Key Takeaways
  • Euler's formula is unsafe for intermediate columns because it ignores yielding.
  • Short columns fail by crushing; long columns fail by elastic buckling; intermediate columns fail by a combination of both.
  • Design codes (like AISC) use empirical, parabolic formulas to determine allowable stresses for intermediate columns based on extensive physical testing.

Local vs. Global Buckling

Different modes of column failure

Buckling Modes

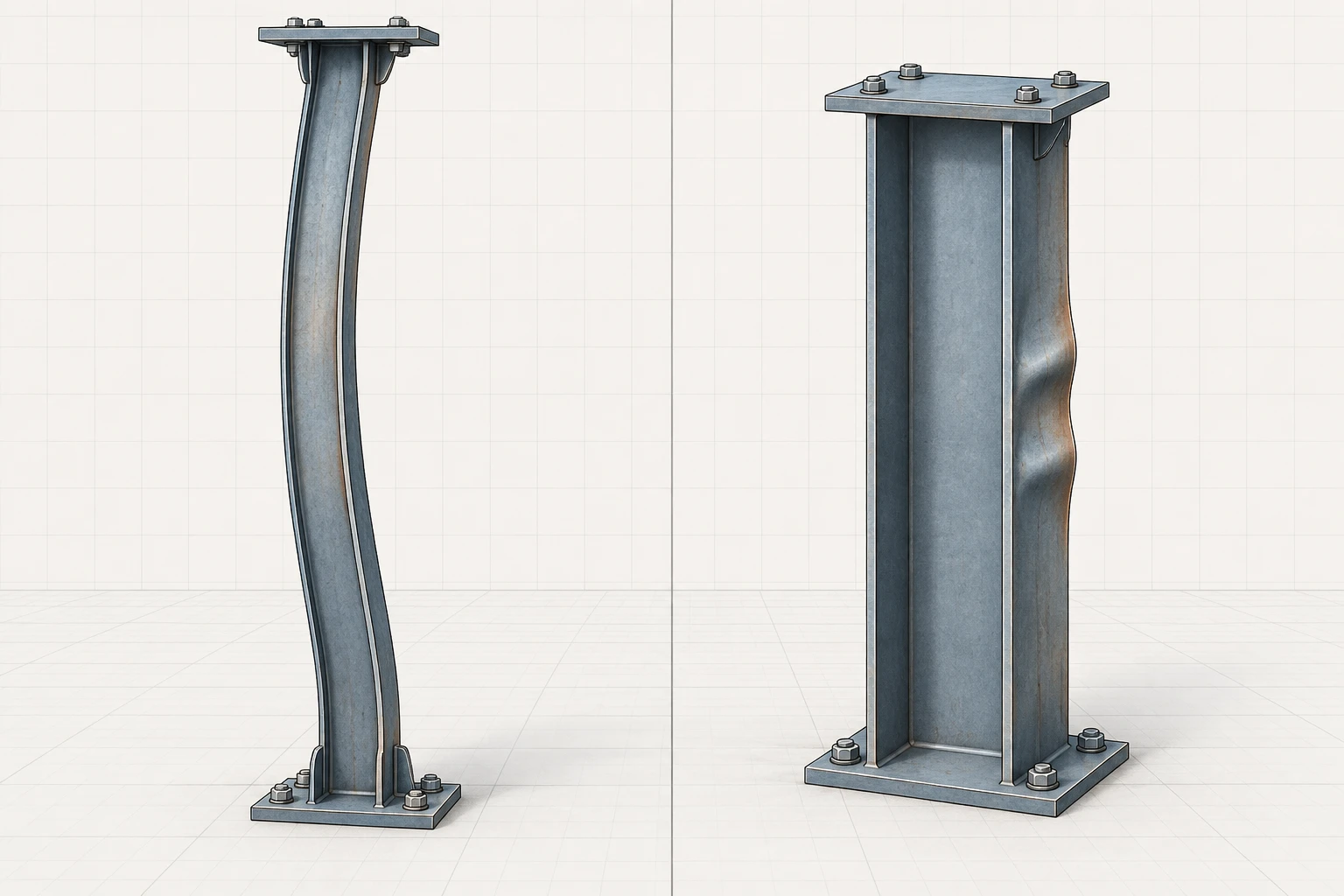

Euler's formula (Pcr=π2EI/Le2P_{cr} = \pi^2 EI / L_e^2) predicts Global Buckling, where the entire length of the column bows out laterally. This is the primary concern for long, slender columns.
However, if a column is made of thin plates (like a built-up I-section, a box column, or a thin-walled tube), a different failure mode called Local Buckling can occur. In local buckling, a localized portion of the cross-section (like the flange or the web) wrinkles or buckles independently before the entire column fails globally. Design codes define limiting width-to-thickness ratios (b/tb/t) for plates to prevent local buckling from governing the design.
Key Takeaways
  • Global buckling involves the lateral bowing of the entire column member.
  • Local buckling involves the wrinkling or buckling of thin, localized elements of the cross-section (flanges, webs) before global failure.
