Module 1: Simple Stresses - Theory & Concepts

Module 1: Simple Stresses

Understanding internal forces and their distribution within materials.

In this module, we introduce the concept of internal forces and simple stresses. Understanding how materials resist external loads is fundamental to structural and architectural design. Before a member breaks, it experiences stress; keeping this stress within safe limits is the engineer's primary goal.

Topics Covered

Checklist

Concept of internal forces
Normal Stress (Tensile and Compressive stress)
Shear Stress (Single and double shear)
Bearing Stress
Allowable stress, working stress, and Factor of Safety

Internal Forces

When external loads are applied to a body, internal forces develop within the material to maintain equilibrium. These internal forces are distributed continuously throughout the material's cross-section. The intensity of this internal force distribution is what we define as stress.

Think of stress as the "effort" the material has to put in to hold itself together under a load.

Normal Stress

Stress perpendicular to the cross-section

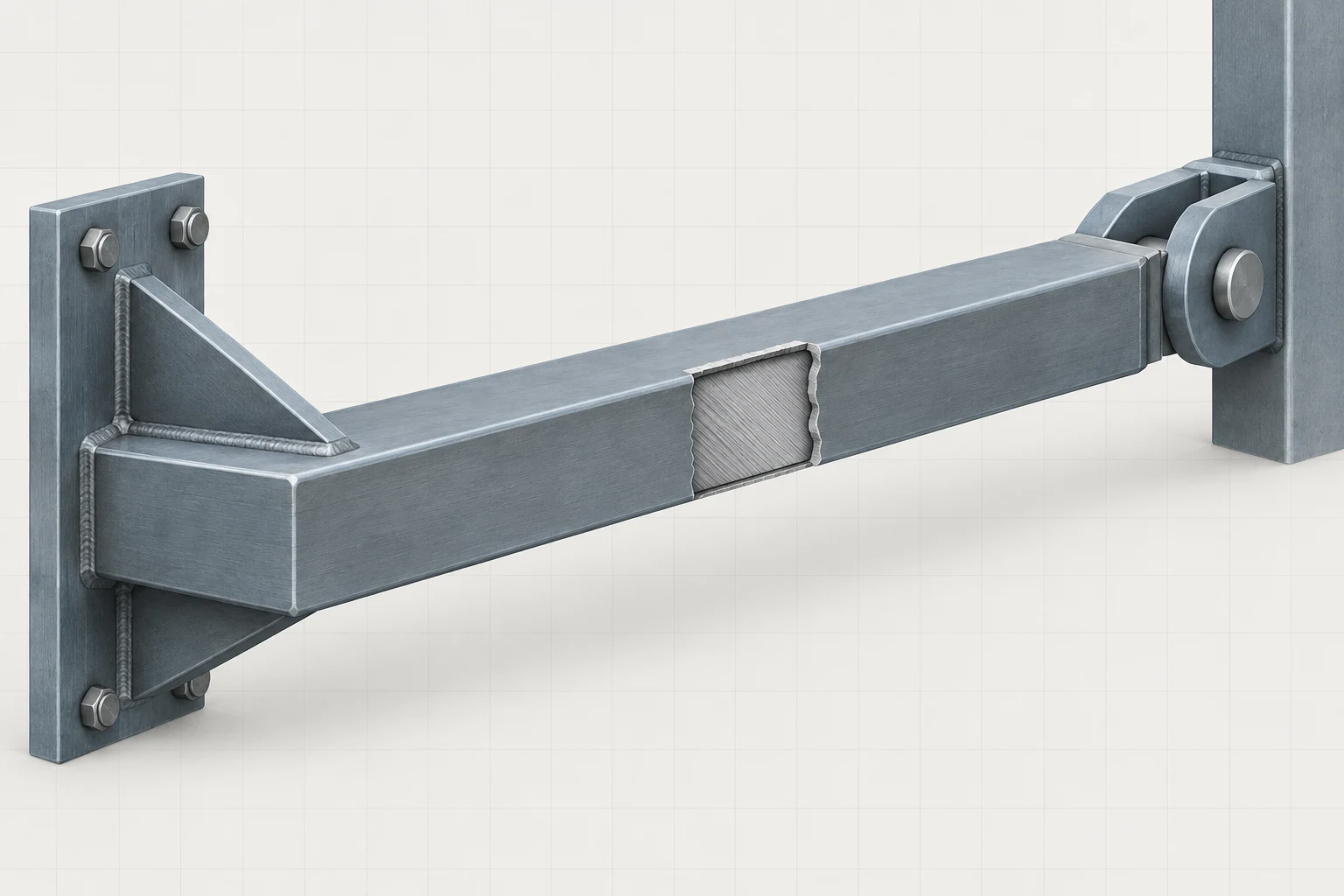

Normal stress occurs when a force is applied perpendicular (normal) to the cross-sectional area of the material. It can be tensile (pulling the material apart) or compressive (pushing the material together).

The formula for normal stress (

\sigma

) is:

\sigma = \frac{P}{A}

Where:

$\sigma$ = Normal Stress (Pa, psi, etc.)
$P$ = Applied axial force (N, lb, etc.)
$A$ = Cross-sectional area perpendicular to the force ( $m^2$ , $in^2$ , etc.)

Normal Stress

Stress that acts perpendicular to the cross-sectional area of a material. It can be tensile (pulling apart) or compressive (pushing together).

Key Takeaways

Normal stress ( $\sigma = P/A$ ) acts perpendicular to the cross-sectional area, causing tension or compression.

Saint-Venant's Principle

Stress distribution near application points

When forces are applied to a body, the stress distribution near the point of application is complex and highly concentrated. However, as we move away from the application point, the stress distribution becomes more uniform.

Saint-Venant's Principle states that the difference between the stresses caused by two different but statically equivalent load systems becomes negligible at distances that are large compared to the dimensions of the area over which the loads are applied.

Saint-Venant's Principle

In practical terms, it means we can assume uniform stress distribution (

\sigma = P/A

) at a distance away from the load application point, typically at a distance equal to the largest dimension of the cross-section.

Key Takeaways

Saint-Venant's Principle allows the assumption of uniform stress distribution at locations sufficiently far from the point of load application.

Stress Concentration

Localized stress spikes due to geometry

The formula

\sigma = P/A

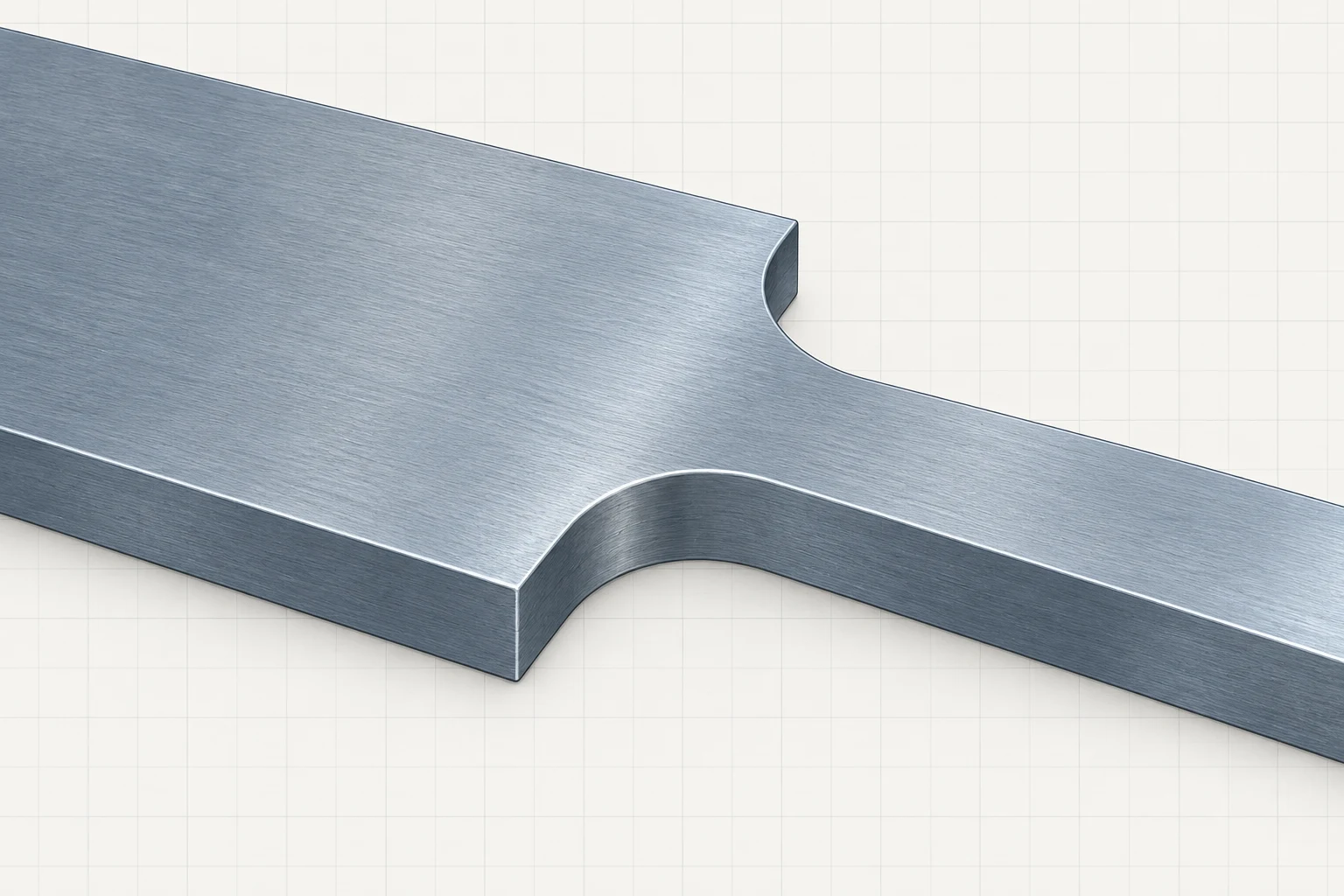

assumes a constant cross-section. However, structural members often have holes, grooves, notches, or sudden changes in cross-section. These geometric discontinuities disrupt the "flow" of stress lines, causing localized spikes in stress called stress concentrations.

The maximum stress at these points is calculated using a Stress Concentration Factor (

K

\sigma_{max} = K \sigma_{avg}

Where:

$\sigma_{max}$ = Maximum localized stress
$K$ = Stress concentration factor (determined experimentally or theoretically, $K \ge 1$ )
$\sigma_{avg}$ = Average stress calculated using the net cross-sectional area ( $\sigma = P/A_{net}$ )

Key Takeaways

Geometric discontinuities cause localized stress spikes (stress concentrations).
Maximum stress is found by multiplying the average stress by a factor $K$ ( $\sigma_{max} = K\sigma_{avg}$ ).

Shear Stress

Stress parallel to the cross-section

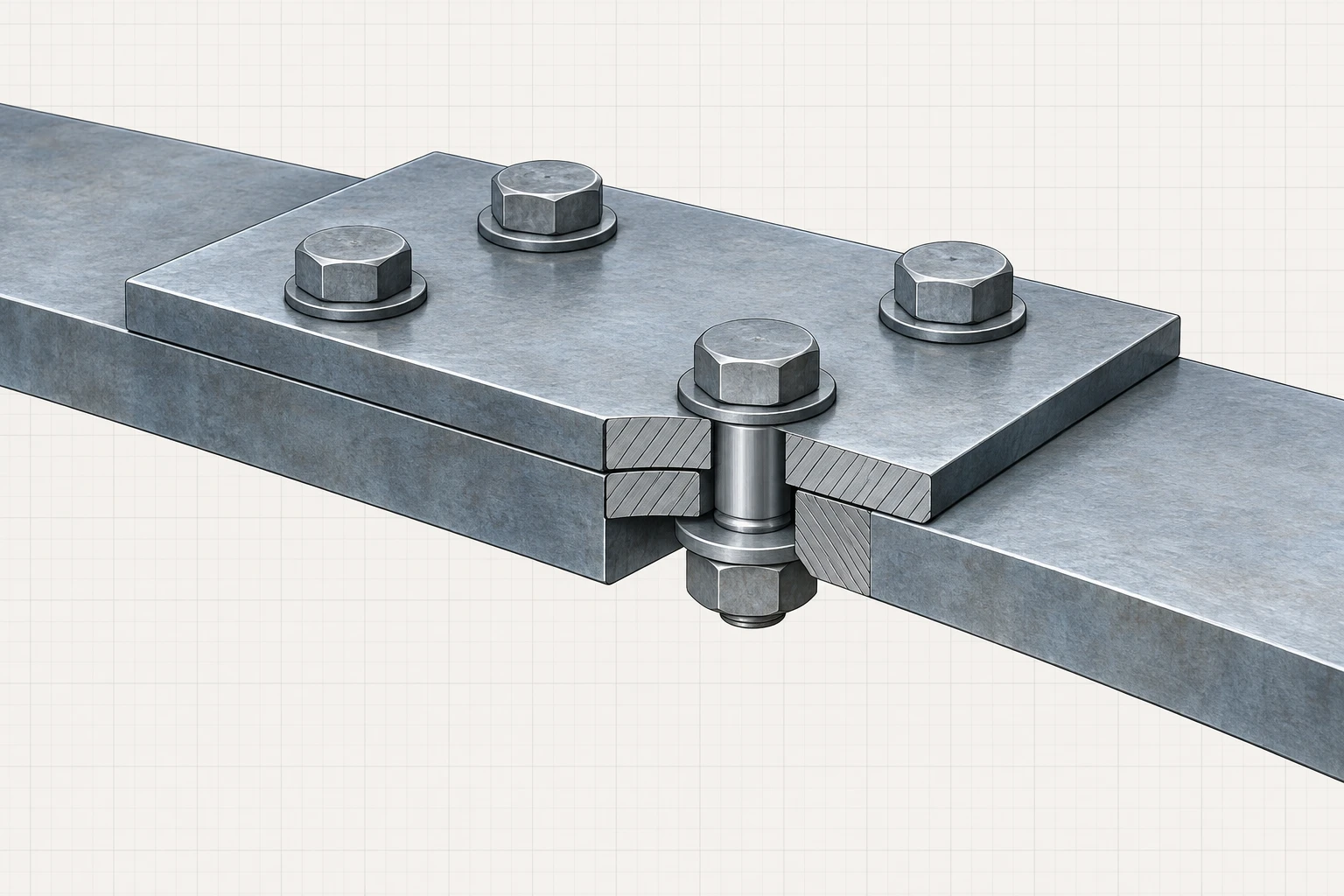

Shear stress occurs when forces are applied parallel to the cross-sectional area, causing one part of the material to slide over another. This is common in bolts, rivets, and pins connecting structural members.

The formula for average shear stress (

\tau

) is:

\tau = \frac{V}{A}

Where:

$\tau$ = Shear Stress
$V$ = Shear force applied parallel to the area
$A$ = Area resisting the shear force

Shear Stress

Stress that acts parallel to the cross-sectional area of a material, causing sliding of one part of a body over an adjacent part.

Key Takeaways

Shear stress ( $\tau = V/A$ ) acts parallel to the cross-sectional area, causing material parts to slide against each other.
Understand the difference between single shear ( $A$ ) and double shear ( $2A$ ) areas.

Bearing Stress

Contact pressure between surfaces

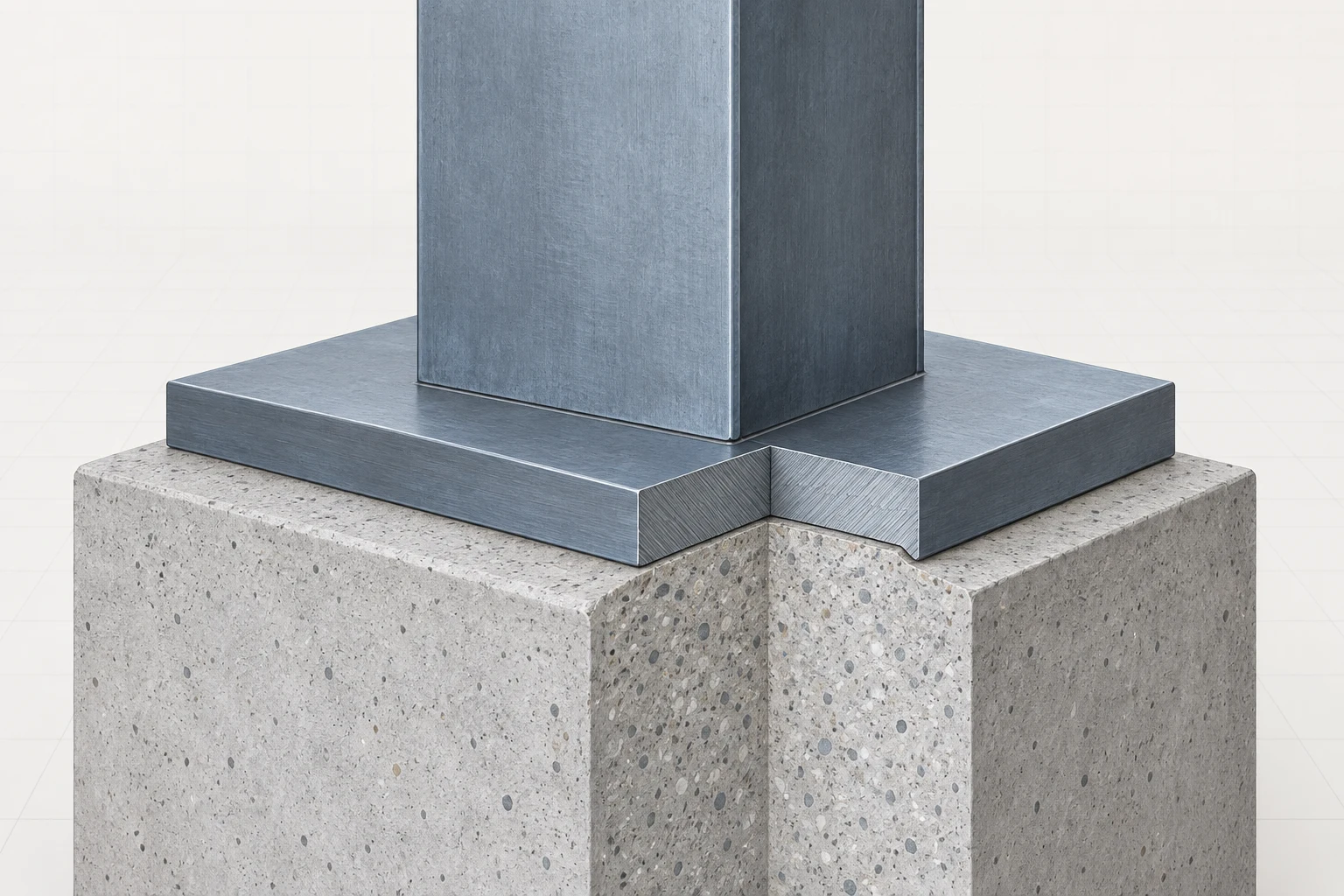

Bearing stress is the contact pressure between two separate bodies. Unlike normal stress which occurs within a member, bearing stress occurs at the surface where two members interact (like a bolt pressing against the side of a hole in a plate, or a column resting on a concrete footing).

The formula for average bearing stress (

\sigma_b

) is:

\sigma_b = \frac{P}{A_b}

Where:

$P$ = Force transferred across the contact surface
$A_b$ = Projected bearing area (For a bolt in a hole, $A_b = diameter \times thickness of plate$ )

Bearing Stress

Contact pressure between separate bodies, typically considered when a member rests on or is supported by another.

Important

Bearing area for a cylinder (like a bolt or pin) in a hole is calculated as the projected area (

A_b = d \times t

), not the actual half-cylindrical contact surface area. This simplification is standard practice in structural engineering.

Key Takeaways

Bearing stress ( $\sigma_b = P/A_b$ ) is the contact pressure acting on the surface between two interacting bodies.
For cylindrical fasteners in holes, use the projected rectangular area ( $d \times t$ ).

Allowable Stress and Factor of Safety

Ensuring safety in structural design

To account for uncertainties in material strength, loads, and approximations in analysis, structures are designed using an allowable (working) stress, which is significantly lower than the material's failure stress. This is crucial for safety and reliability in engineering.

Factor of Safety (FS) = \frac{Failure Stress}{Allowable Stress}

Note

The choice of a Factor of Safety depends on several factors, including:

Material properties (ductile vs. brittle)
Uncertainty in load estimates
Consequences of failure (e.g., loss of life vs. simple repair)
Environmental conditions (e.g., corrosion over time)
Accuracy of structural analysis methods

When solving problems, ensure you differentiate between the material's ultimate strength (failure stress) and the working strength (allowable stress). For example, if a steel has an ultimate strength of

400 MPa

and you need a Factor of Safety of 2, the allowable stress for design would be

200 MPa

Key Takeaways

The Factor of Safety relates the actual failure stress to the allowable (working) stress for safe design.
Design structures using allowable stresses to account for uncertainties in loading and material properties.

Thermal Stress

Stresses induced by temperature changes

When a material undergoes a change in temperature (

\Delta T

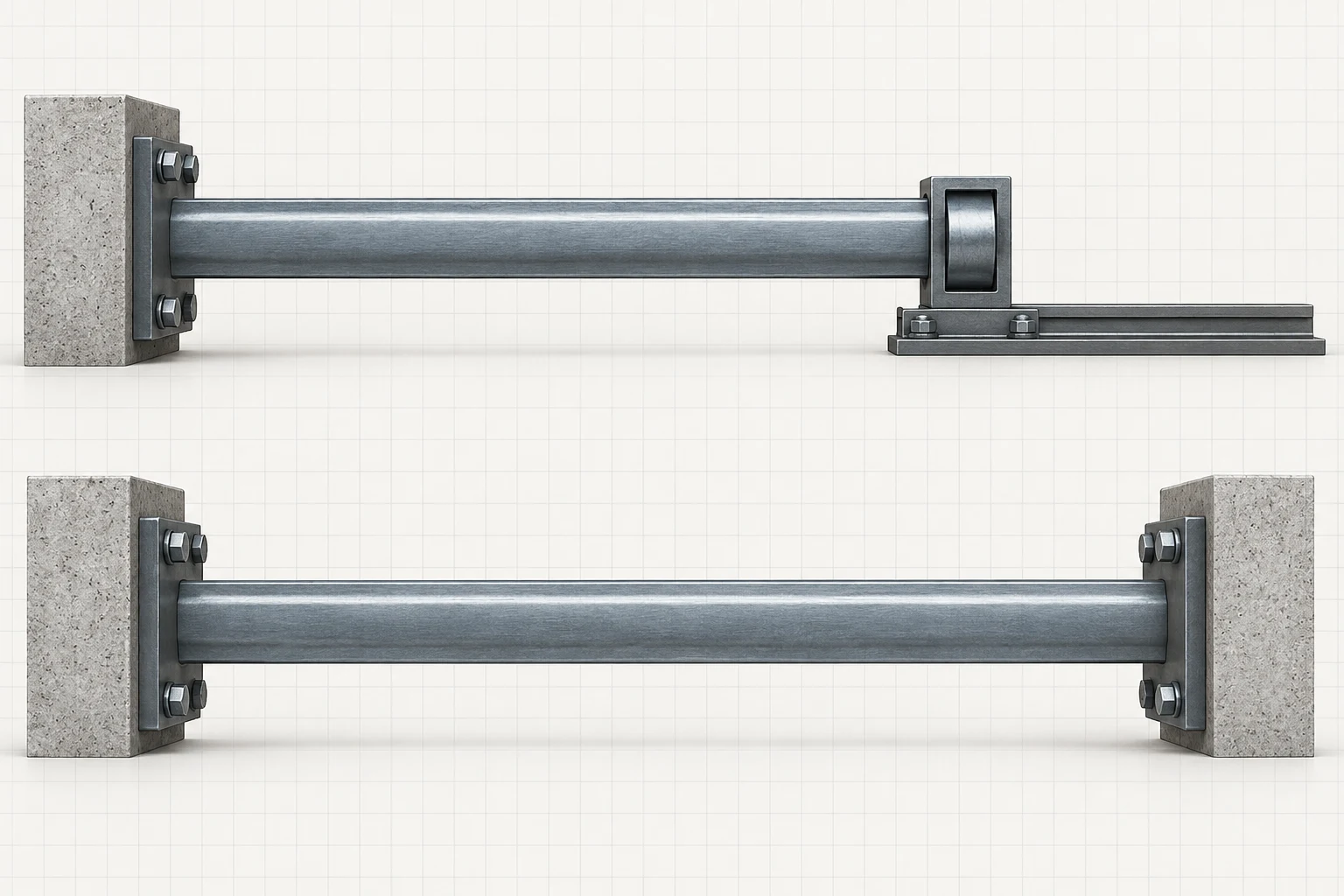

), it tends to expand when heated and contract when cooled. If this natural thermal expansion or contraction is unrestricted, no internal stresses are developed; only thermal deformation occurs. However, if the member is constrained and prevented from changing its length, internal forces build up, resulting in thermal stress.

The formula for unrestrained thermal deformation (

\delta_T

) is:

\delta_T = \alpha L \Delta T

Where:

$\delta_T$ = Change in length due to temperature
$\alpha$ = Coefficient of linear thermal expansion (e.g., $1/^\circ C$ or $1/^\circ F$ )
$L$ = Original length of the member
$\Delta T$ = Change in temperature

If the member is completely restricted from expanding or contracting, the internal thermal stress (

\sigma_T

) developed is:

\sigma_T = E \alpha \Delta T

Where:

$E$ = Modulus of Elasticity of the material

Thermal Stress

Internal stress developed in a material when its natural thermal expansion or contraction is constrained by external supports or adjacent members.

Important Considerations

When designing structures exposed to significant temperature fluctuations (like bridges or long continuous rails), engineers must provide expansion joints to allow free movement, thereby preventing dangerous thermal stresses that could cause buckling or material failure.

Key Takeaways

Unrestricted temperature changes cause thermal deformation ( $\delta_T = \alpha L \Delta T$ ) but no stress.
Constraining a member undergoing a temperature change induces thermal stress ( $\sigma_T = E \alpha \Delta T$ ).

Design Considerations and Material Properties

Linking Simple Stresses to Practical Application

Material Properties and the Factor of Safety

In engineering design, calculating the simple stress (

\sigma = P/A

\tau = V/A

) is only the first step. The calculated stress must be compared against the material's Yield Strength (

S_y

) or Ultimate Strength (

S_u

) to ensure safety. The Factor of Safety (

FS

) is a critical parameter that accounts for uncertainties in loading, material defects, and simplifying assumptions in analysis.

For ductile materials (like steel), design is often based on Yield Strength:

Allowable Stress = S_y / FS

. For brittle materials (like concrete or cast iron), design is based on Ultimate Strength:

Allowable Stress = S_u / FS

Key Takeaways

Calculated simple stresses are compared against material properties ( $S_y$ or $S_u$ ) using a Factor of Safety.
Ductile materials typically fail by yielding, while brittle materials fail by fracture.
